Unidirectional TVS Diode, DO-214AC package, offering 400W peak pulse power and 12.3A peak pulse current. Features a 20V reverse standoff voltage, 22.2V minimum breakdown voltage, and 32.4V clamping voltage. Operates across a -65°C to 150°C temperature range with low 1uA leakage current. Surface mount design with SMD/SMT termination, lead-free and RoHS compliant.
PackageDO-214AC
MountingSurface Mount
PolarityUnidirectional
Power400W
Quick Jump:
Technical Specifications
Littelfuse SMAJ20A technical specifications.
General
Package/Case
DO-214AC
Clamping Voltage
32.4V
Clamping Voltage-Max
32.4V
Diode Type
ZENER
Direction
Unidirectional
Height
2.29mm
Lead Free
Lead Free
Leakage Current
1uA
Length
5.28mm
Max Breakdown Voltage
24.5V
Min Breakdown Voltage
22.2V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
3.3W
Max Surge Current
12.3A
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
20V
Package Quantity
5000
Packaging
Tape and Reel
Peak Pulse Current
12.3A
Peak Pulse Power
400W
Polarity
Unidirectional
Power Dissipation
400W
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
22.2V
Reverse Standoff Voltage
20V
RoHS Compliant
Yes
Series
SMAJ
Termination
SMD/SMT
DC Rated Voltage
20V
Width
2.79mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse SMAJ20A Datasheet
Download the complete datasheet for Littelfuse SMAJ20A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

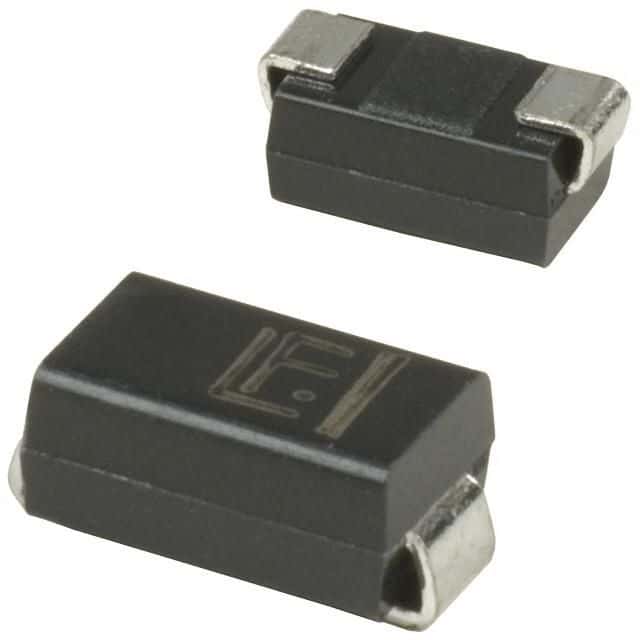

Product Images
