Unidirectional Transient Voltage Suppressor (TVS) diode designed for surface mount applications. Features a 400W peak pulse power rating and a 24V DC rated voltage. Offers a breakdown voltage range of 26.7V to 29.5V with a clamping voltage of 38.9V. Operates across a wide temperature range from -55°C to 150°C, with a low leakage current of 1µA. Packaged in a DO-214AC (SMA) plastic package, this component is RoHS compliant.
PackageDO-214AC
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Littelfuse SMAJ24A technical specifications.
General
| Package/Case | DO-214AC |
| Clamping Voltage | 38.9V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Height | 2.087mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 4.5mm |
| Max Breakdown Voltage | 29.5V |
| Min Breakdown Voltage | 26.7V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 400W |
| Max Reverse Leakage Current | 1uA |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 10.3A |
| Peak Pulse Power | 400W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 26.7V |
| Reverse Standoff Voltage | 24V |
| Reverse Voltage | 24V |
| RoHS Compliant | Yes |
| Series | SMAJ |
| DC Rated Voltage | 24V |
| Width | 2.79mm |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse SMAJ24A Datasheet
Download the complete datasheet for Littelfuse SMAJ24A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

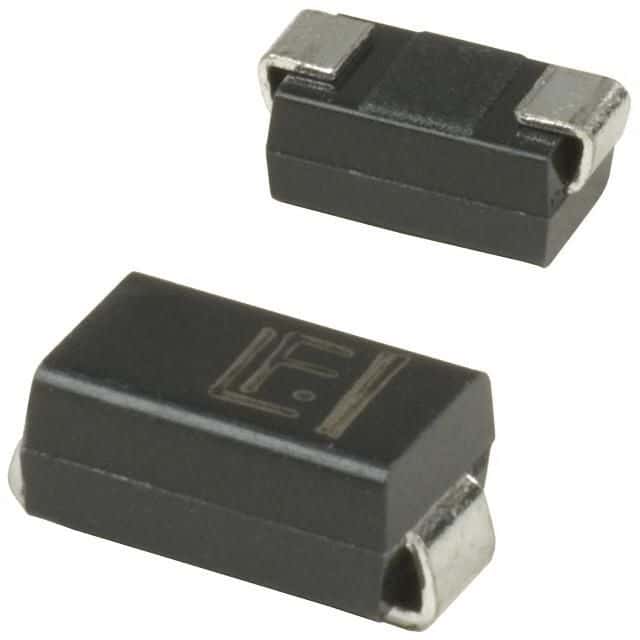

Product Images
