Unidirectional Transient Voltage Suppressor (TVS) diode designed for surface mount applications. Features a 36V DC rated voltage and 400W peak pulse power handling. Offers a minimum breakdown voltage of 40V and a maximum clamping voltage of 58.1V. Operates within a temperature range of -65°C to 150°C with a low leakage current of 1µA. Packaged in a DO-214AC (SMA) case.
PackageDO-214AC
MountingSurface Mount
PolarityUnidirectional
Power400W
Quick Jump:
Technical Specifications
Littelfuse SMAJ36A technical specifications.
General
| Package/Case | DO-214AC |
| Clamping Voltage | 58.1V |
| Clamping Voltage-Max | 58.1V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Height | 2.29mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 5.28mm |
| Max Breakdown Voltage | 44.2V |
| Min Breakdown Voltage | 40V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 3.3W |
| Max Reverse Leakage Current | 1uA |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Packaging | Cut Tape |
| Peak Pulse Current | 6.9A |
| Peak Pulse Power | 400W |
| Polarity | Unidirectional |
| Power Dissipation | 400W |
| Power Line Protection | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 40V |
| Reverse Standoff Voltage | 36V |
| Reverse Voltage | 36V |
| RoHS Compliant | Yes |
| Series | SMAJ |
| DC Rated Voltage | 36V |
| Width | 2.79mm |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse SMAJ36A Datasheet
Download the complete datasheet for Littelfuse SMAJ36A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

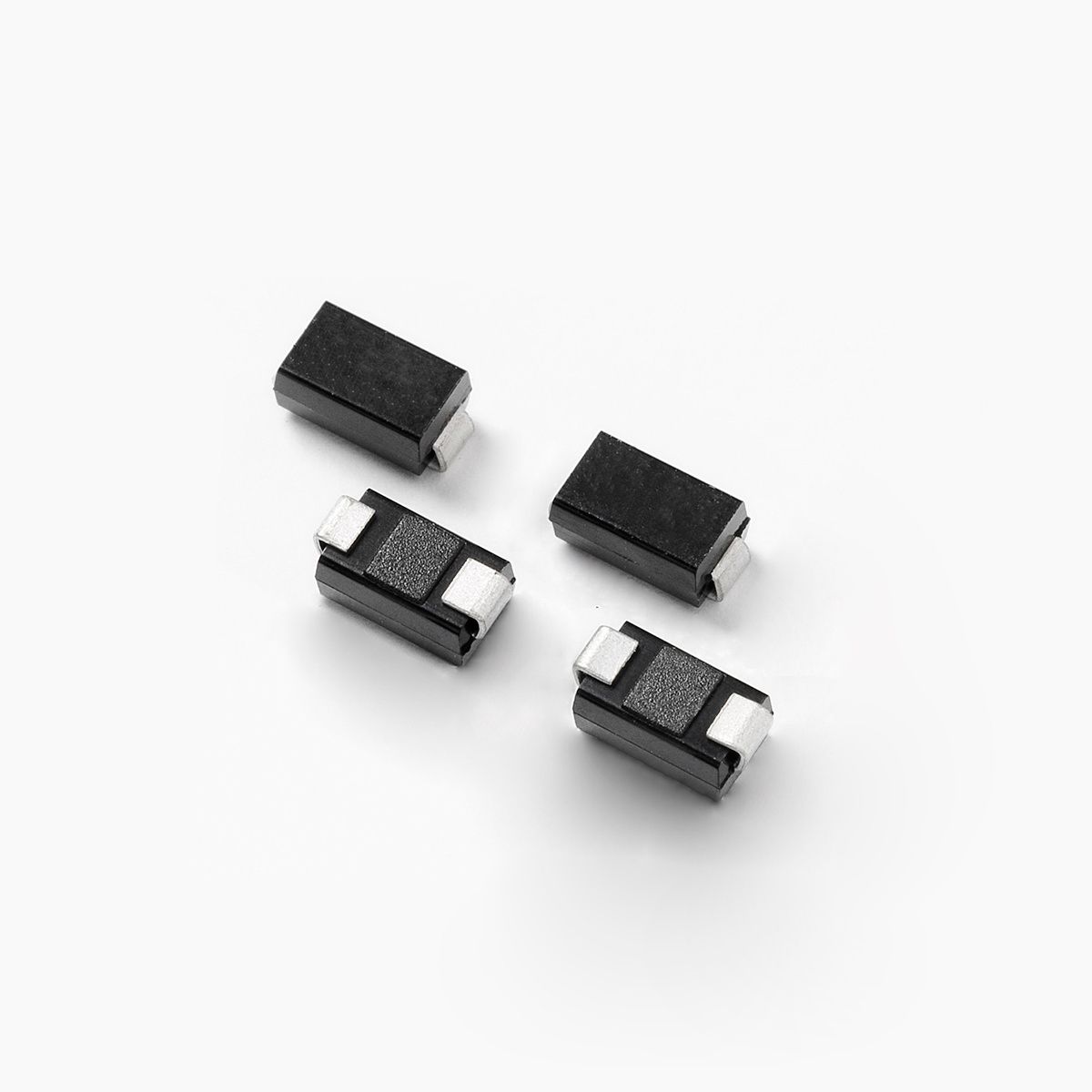

Product Images
