Unidirectional TVS diode for surge suppression, featuring a 14V DC rated voltage and 15.6V reverse breakdown voltage. This surface mount component, housed in a DO-214AA package, offers a 600W peak pulse power rating with a 23.2V clamping voltage. Operating across a wide temperature range of -65°C to 150°C, it exhibits a low leakage current of 1µA.
PackageDO-214AA
MountingSurface Mount
PolarityUnidirectional
Power600W
Quick Jump:
Technical Specifications
Littelfuse SMBJ14A technical specifications.
General
Package/Case
DO-214AA
Clamping Voltage
23.2V
Clamping Voltage-Max
23.2V
Diode Type
ZENER
Direction
Unidirectional
Height
2.44mm
Lead Free
Lead Free
Leakage Current
1uA
Length
5.59mm
Max Breakdown Voltage
17.2V
Min Breakdown Voltage
15.6V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
600W
Mount
Surface Mount
Number of Elements
1
Number of Unidirectional Channels
1
Packaging
Cut Tape
Peak Pulse Current
25.9A
Peak Pulse Power
600W
Polarity
Unidirectional
Power Dissipation
600W
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
15.6V
Reverse Standoff Voltage
14V
RoHS Compliant
Yes
Series
SMBJ
DC Rated Voltage
14V
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse SMBJ14A Datasheet
Download the complete datasheet for Littelfuse SMBJ14A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

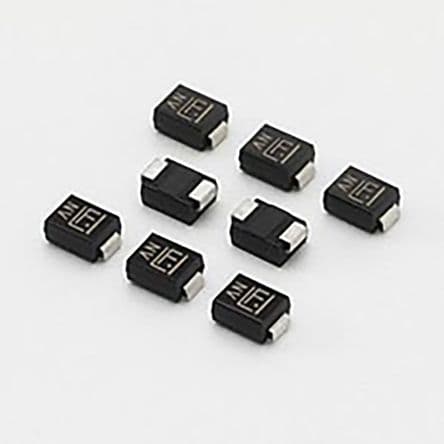

Product Images
