Unidirectional Transient Voltage Suppressor (TVS) diode with 600W peak pulse power and 11.3A peak pulse current. Features a 33V reverse standoff voltage and 36.7V minimum breakdown voltage. Clamping voltage is 53.3V, with a maximum power dissipation of 5W. This silicon diode is housed in a DO-214AA surface mount package, operating from -65°C to 150°C. It is RoHS compliant and lead-free.
PackageDO-214AA
MountingSurface Mount
PolarityUnidirectional
Power600W
Quick Jump:
Technical Specifications
Littelfuse SMBJ33A technical specifications.
General
| Package/Case | DO-214AA |
| Clamping Voltage | 53.3V |
| Clamping Voltage-Max | 53.3V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Height | 2.237mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 4.57mm |
| Max Breakdown Voltage | 40.6V |
| Min Breakdown Voltage | 36.7V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 11.3A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 33V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 11.3A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Dissipation | 600W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 36.7V |
| Reverse Standoff Voltage | 33V |
| Reverse Voltage | 33V |
| RoHS Compliant | Yes |
| Series | SMBJ |
| Termination | SMD/SMT |
| DC Rated Voltage | 33V |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse SMBJ33A Datasheet
Download the complete datasheet for Littelfuse SMBJ33A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

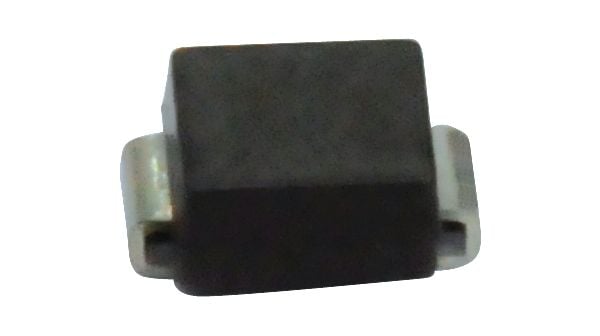

Product Images
