Bidirectional TVS diode for surge suppression, featuring a 40V DC rated voltage and 64.5V clamping voltage. This surface mount component, housed in a DO-214AA package, offers a 600W peak pulse power rating and 9.3A peak pulse current handling. Operating across a wide temperature range of -65°C to 150°C, it exhibits a low leakage current of 1uA and is RoHS compliant.
PackageDO-214AA
MountingSurface Mount
PolarityBidirectional
Power600W
Quick Jump:
Technical Specifications
Littelfuse SMBJ40CA technical specifications.
General
Package/Case
DO-214AA
Clamping Voltage
64.5V
Clamping Voltage-Max
64.5V
Diode Type
ZENER
Direction
Bidirectional
Height
2.44mm
Lead Free
Lead Free
Leakage Current
1uA
Length
5.59mm
Max Breakdown Voltage
49.1V
Min Breakdown Voltage
44.4V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
5W
Max Surge Current
9.3A
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
40V
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
9.3A
Peak Pulse Power
600W
Polarity
Bidirectional
Power Dissipation
600W
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Breakdown Voltage
44.4V
Reverse Standoff Voltage
40V
RoHS Compliant
Yes
Series
SMBJ
Termination
SMD/SMT
DC Rated Voltage
40V
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse SMBJ40CA Datasheet
Download the complete datasheet for Littelfuse SMBJ40CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

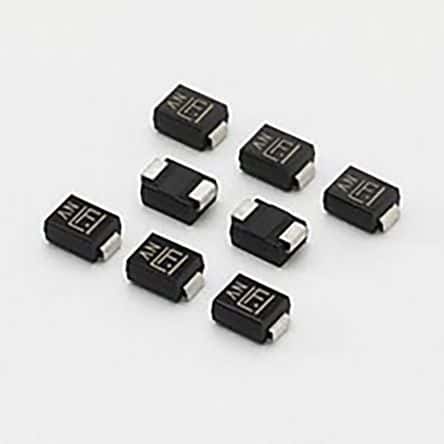

Product Images
