Bidirectional TVS Diode, Surface Mount, DO-214AA package. Features 43V DC rated voltage, 47.8V minimum breakdown voltage, and 69.4V clamping voltage. Offers 600W peak pulse power and 8.7A peak pulse current. Operates from -65°C to 150°C with 1uA leakage current.
PackageDO-214AA
MountingSurface Mount
PolarityBidirectional
Power600W
Quick Jump:
Technical Specifications
Littelfuse SMBJ43CA technical specifications.
General
Package/Case
DO-214AA
Clamping Voltage
69.4V
Clamping Voltage-Max
69.4V
Diode Type
ZENER
Direction
Bidirectional
Height
2.237mm
Lead Free
Lead Free
Leakage Current
1uA
Length
4.57mm
Max Breakdown Voltage
52.8V
Min Breakdown Voltage
47.8V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
5W
Max Reverse Leakage Current
1uA
Max Surge Current
8.7A
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
43V
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
8.7A
Peak Pulse Power
600W
Polarity
Bidirectional
Power Dissipation
600W
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
47.8V
Reverse Standoff Voltage
43V
RoHS Compliant
Yes
Series
SMBJ
Termination
SMD/SMT
DC Rated Voltage
43V
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse SMBJ43CA Datasheet
Download the complete datasheet for Littelfuse SMBJ43CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

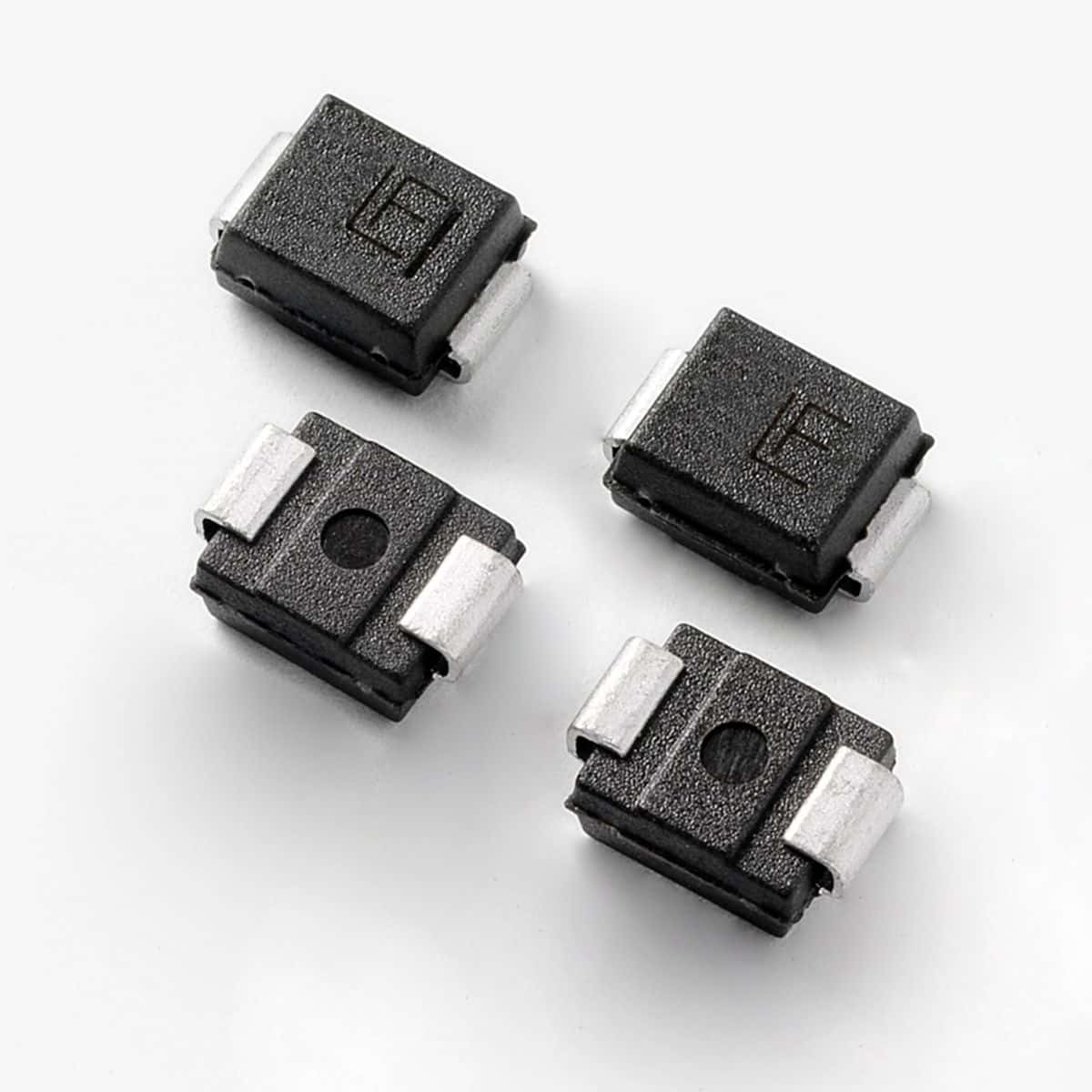

Product Images
