Bidirectional Transient Voltage Suppressor (TVS) diode for surface mount applications. Features a 30V reverse standoff voltage, 33.3V minimum breakdown voltage, and 48.4V clamping voltage. Offers 1.5kW peak pulse power dissipation and 31A peak pulse current handling. Operates across a -65°C to 150°C temperature range. Packaged in a DO-214AB (SMC) case, supplied on tape and reel.
PackageDO-214AB
MountingSurface Mount
PolarityBidirectional
Power1.5kW
Quick Jump:
Technical Specifications
Littelfuse SMCJ30CA technical specifications.
General
| Package/Case | DO-214AB |
| Clamping Voltage | 48.4V |
| Clamping Voltage-Max | 48.4V |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Height | 2.417mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 7.11mm |
| Max Breakdown Voltage | 36.8V |
| Min Breakdown Voltage | 33.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 6.5W |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 31A |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 30V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 31A |
| Peak Pulse Power | 1.5kW |
| Polarity | Bidirectional |
| Power Dissipation | 1.5kW |
| Power Line Protection | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 33.3V |
| Reverse Standoff Voltage | 30V |
| RoHS Compliant | Yes |
| Series | SMCJ |
| Termination | SMD/SMT |
| DC Rated Voltage | 30V |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse SMCJ30CA Datasheet
Download the complete datasheet for Littelfuse SMCJ30CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

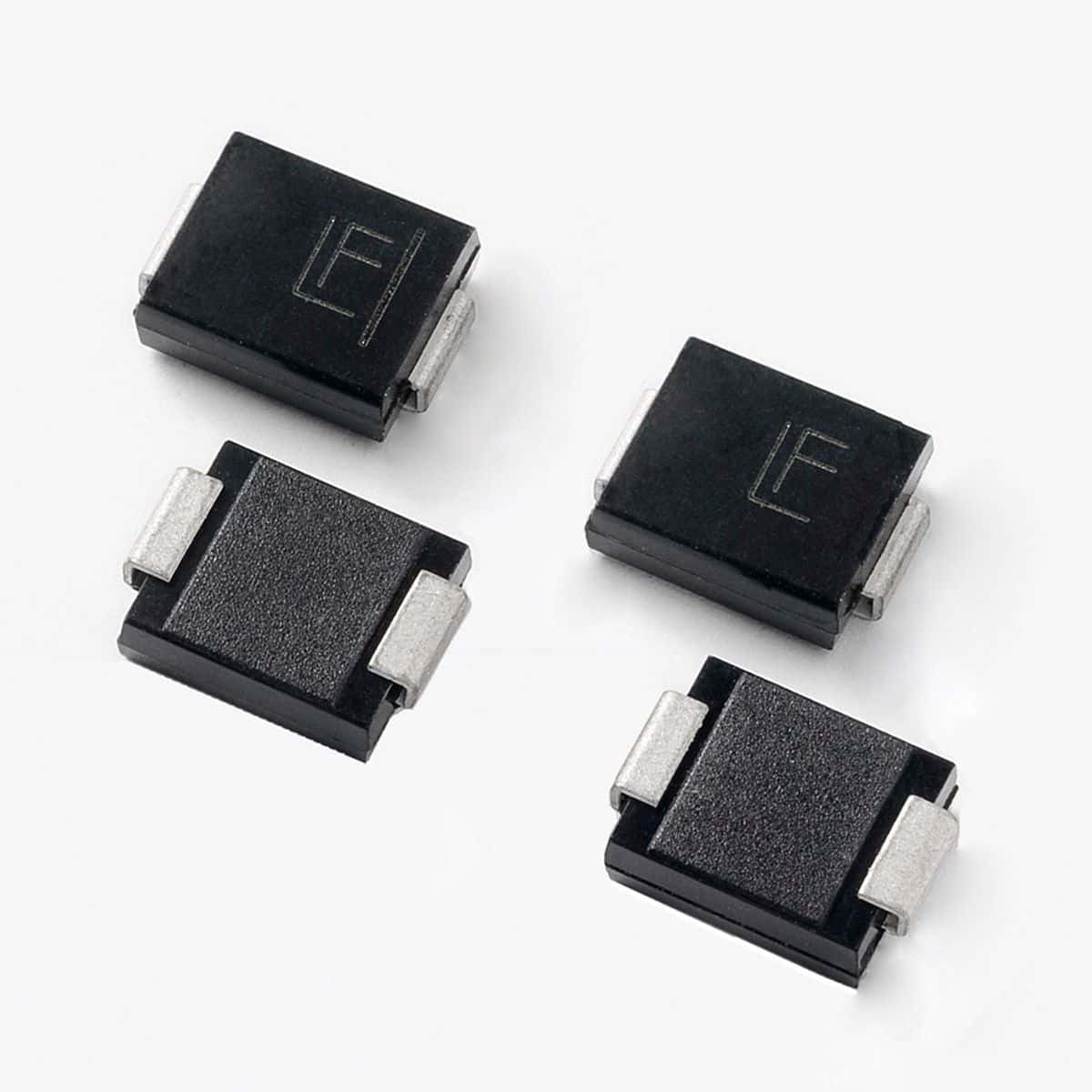

Product Images
