Bidirectional Transient Voltage Suppressor (TVS) diode designed for surface mount applications. Features a 36V DC rated voltage and 1.5kW peak pulse power handling. Offers a 40V minimum breakdown voltage and a 58.1V clamping voltage. Operates across a wide temperature range from -65°C to 150°C with a low leakage current of 1uA. Packaged in a DO-214AB (SMC) case, supplied on tape and reel.
PackageDO-214AB
MountingSurface Mount
PolarityBidirectional
Power1.5kW
Quick Jump:
Technical Specifications
Littelfuse SMCJ36CA technical specifications.
General
Package/Case
DO-214AB
Clamping Voltage
58.1V
Clamping Voltage-Max
58.1V
Diode Type
ZENER
Direction
Bidirectional
Height
2.62mm
Lead Free
Lead Free
Leakage Current
1uA
Length
8.13mm
Max Breakdown Voltage
44.2V
Min Breakdown Voltage
40V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
6.5W
Max Surge Current
25.9A
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
36V
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
25.9A
Peak Pulse Power
1.5kW
Polarity
Bidirectional
Power Dissipation
1.5kW
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
40V
Reverse Standoff Voltage
36V
RoHS Compliant
Yes
Series
SMCJ
Termination
SMD/SMT
DC Rated Voltage
36V
Width
6.22mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse SMCJ36CA Datasheet
Download the complete datasheet for Littelfuse SMCJ36CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

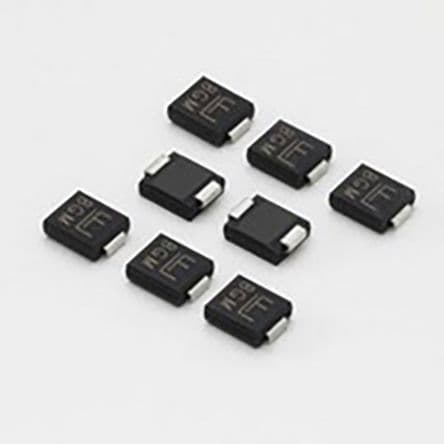

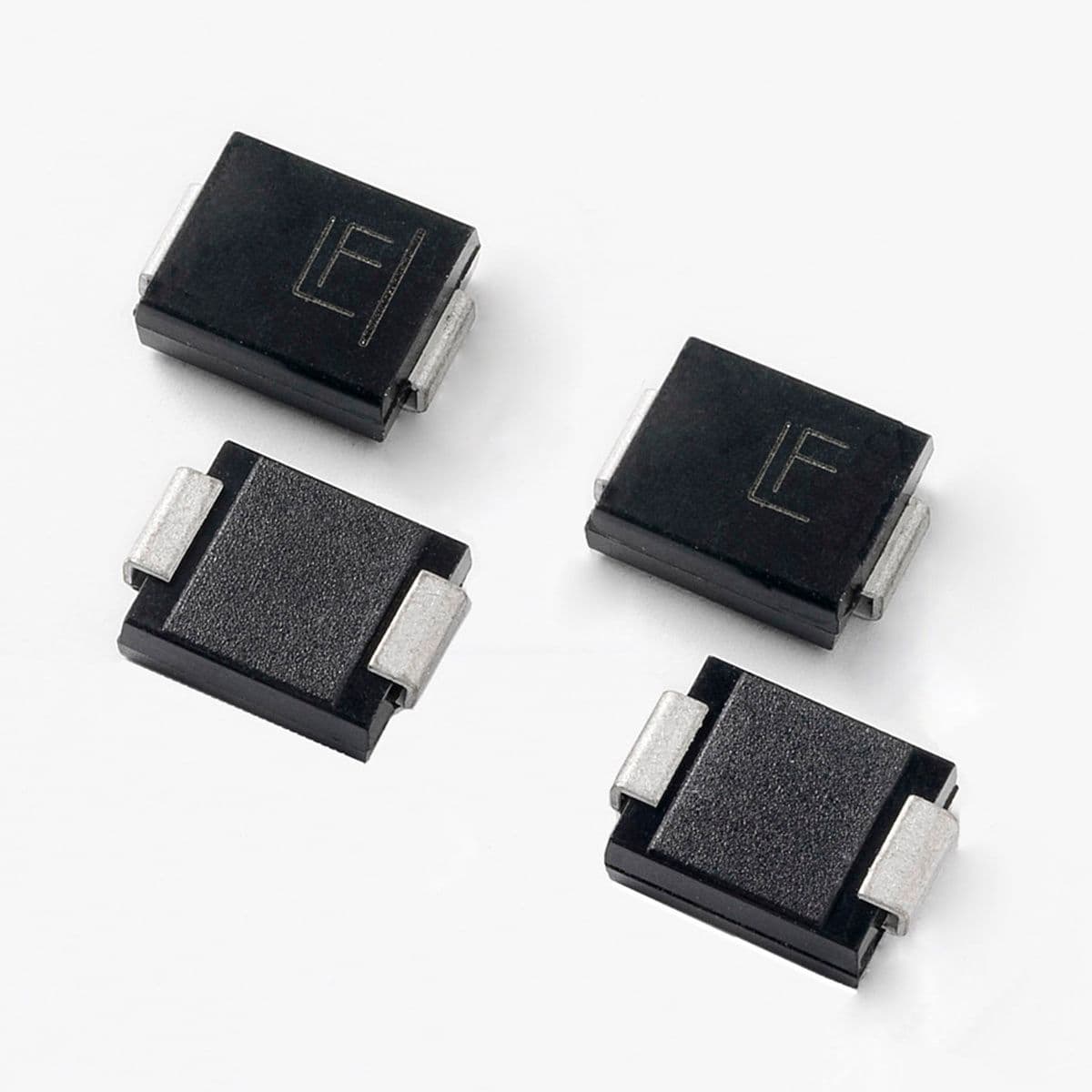

Product Images
