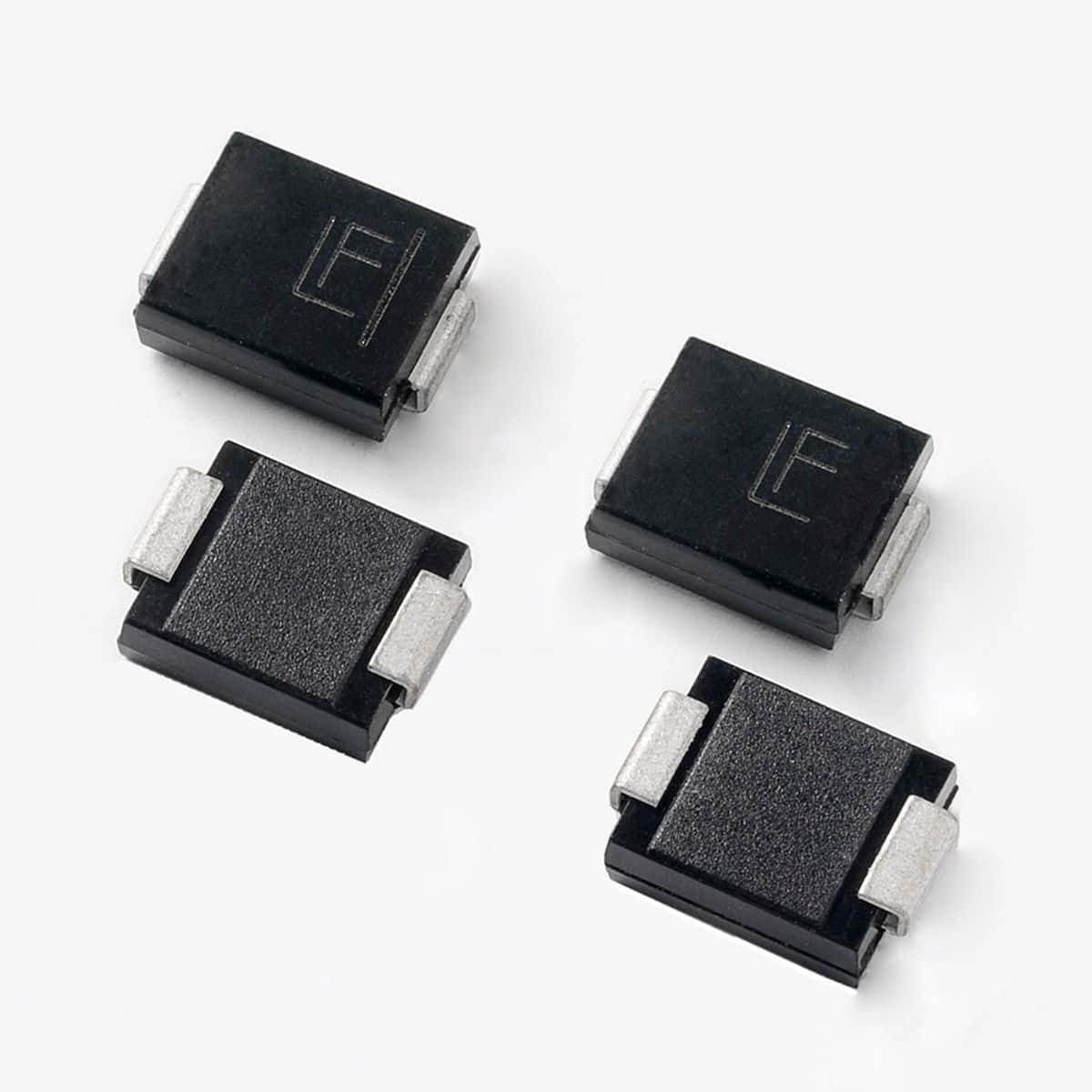

Bidirectional TVS Diode, 40V DC rated voltage, featuring a 64.5V clamping voltage and 44.4V reverse breakdown voltage. This surface mount component, housed in a DO-214AB package, offers 1.5kW peak pulse power and 6.5W max power dissipation. Operating across a wide temperature range of -55°C to 150°C, it provides robust surge suppression with a 23.3A peak pulse current capability.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Littelfuse SMCJ40CA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DO-214AB |
| Clamping Voltage | 64.5V |
| Clamping Voltage-Max | 64.5V |
| Current | 1mA |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Height | 2.62mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 8.13mm |
| Max Breakdown Voltage | 49.1V |
| Min Breakdown Voltage | 44.4V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 6.5W |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Elements | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 23.3A |
| Peak Pulse Power | 1.5kW |
| Polarity | Bidirectional |
| Power Dissipation | 1.5kW |
| Power Line Protection | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 44.4V |
| Reverse Standoff Voltage | 40V |
| RoHS Compliant | Yes |
| Series | SMCJ |
| Voltage | 40V |
| DC Rated Voltage | 40V |
| Width | 6.22mm |
| RoHS | Compliant |
