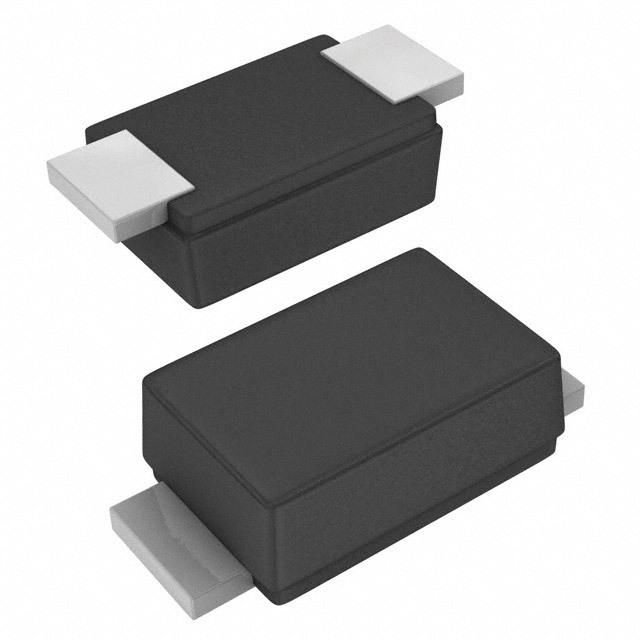

Unidirectional Transient Voltage Suppressor (TVS) diode offering 200W peak pulse power and 6.2A peak pulse current. Features a 20V reverse standoff voltage, 22.2V minimum breakdown voltage, and 24.5V maximum breakdown voltage. Clamping voltage is 32.4V with a low leakage current of 1µA. Designed for surface mount applications with a temperature range of -55°C to 150°C.
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Littelfuse SMF20A technical specifications.
General
| Clamping Voltage | 32.4V |
| Diode Type | ZENER |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Max Breakdown Voltage | 24.5V |
| Min Breakdown Voltage | 22.2V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 6.2A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 6.2A |
| Peak Pulse Power | 200W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 22.2V |
| Reverse Standoff Voltage | 20V |
| Reverse Voltage | 20V |
| RoHS Compliant | Yes |
| Series | SMF |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse SMF20A Datasheet
Download the complete datasheet for Littelfuse SMF20A to view detailed technical specifications.
