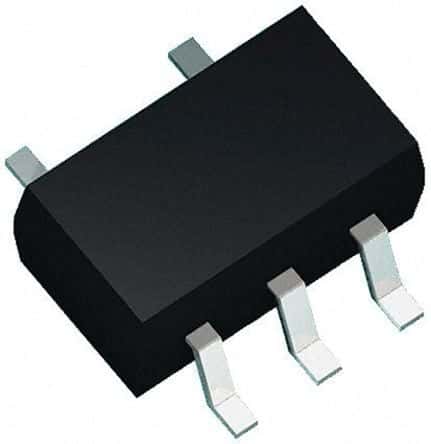

Unidirectional TVS Diode for surge suppression, featuring a 5.5V reverse standoff voltage and 5V DC rated voltage. Offers 7.8V clamping voltage with a maximum of 8V, and a low leakage current of 100nA. This surface mount component, in an SC package, provides 4 unidirectional channels with 200mW power dissipation and a capacitance of 30pF. Operating temperature range is -40°C to 85°C, with RoHS and Lead Free compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Littelfuse SP0504BAJTG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 30pF |
| Package/Case | SC |
| Clamping Voltage | 7.8V |
| Clamping Voltage-Max | 8V |
| Depth | 1.35mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Height | 1mm |
| Lead Free | Lead Free |
| Leakage Current | 100nA |
| Length | 2.25mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Unidirectional Channels | 4 |
| Packaging | Tape and Reel |
| Polarity | Bidirectional, Unidirectional |
| Power Dissipation | 200mW |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Standoff Voltage | 5.5V |
| RoHS Compliant | Yes |
| Series | SP05, SPA® |
| Termination | SMD/SMT |
| DC Rated Voltage | 5V |
| Width | 1.35mm |
| Working Voltage | 5.5V |
| RoHS | Compliant |
Download the complete datasheet for Littelfuse SP0504BAJTG to view detailed technical specifications.
