Bidirectional transient voltage suppressor diode with a 6V working voltage and 8.5V minimum breakdown voltage. Features a 15.6V clamping voltage and 10A peak pulse current capability, designed for surface mount applications. This silicon diode offers a low leakage current of 500nA and a capacitance of 30pF, operating across a temperature range of -40°C to 125°C. Packaged in tape and reel for efficient assembly.
Capacitance30pF
Voltage Rating6V
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Littelfuse SP1005-01ETG technical specifications.
General
| Capacitance | 30pF |
| Clamping Voltage | 15.6V |
| Depth | 0.6mm |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Leakage Current | 500nA |
| Length | 1mm |
| Min Breakdown Voltage | 8.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 8A |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Operating Supply Voltage | 6V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 10A |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 6V |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101, SP1005, SPA® |
| Termination | SMD/SMT |
| Working Voltage | 6V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse SP1005-01ETG Datasheet
Download the complete datasheet for Littelfuse SP1005-01ETG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

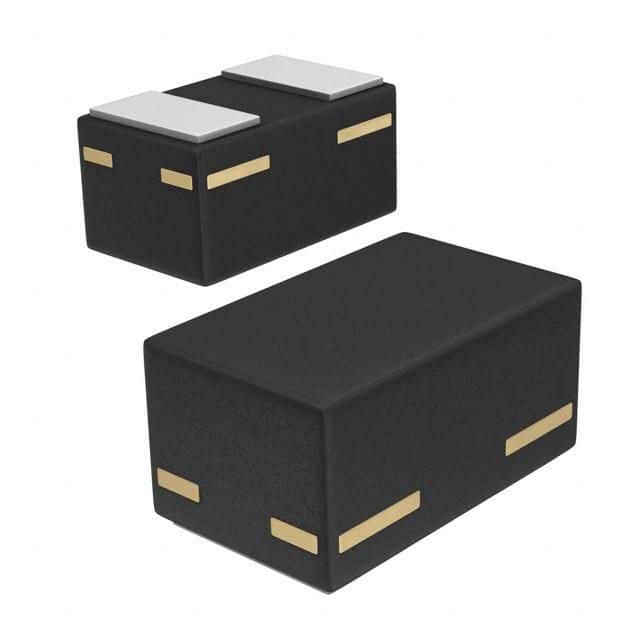

Product Images
