Unidirectional Transient Voltage Suppressor (TVS) diode for surface mount applications. Features a 6V reverse standoff voltage and 15V clamping voltage, with a maximum surge current of 4A. This silicon component offers low capacitance of 0.85pF and a leakage current of 500nA. Designed for power line protection, it operates within a temperature range of -40°C to 85°C and is RoHS compliant.
PackageSOT-563
Capacitance0.85pF
Voltage Rating6V
MountingSurface Mount
Quick Jump:
Technical Specifications
Littelfuse SP3004-04XTG technical specifications.
General
| Capacitance | 0.85pF |
| Package/Case | SOT-563 |
| Clamping Voltage | 15V |
| Clamping Voltage-Max | 15V |
| Depth | 1.3mm |
| Direction | Unidirectional |
| Lead Free | Lead Free |
| Leakage Current | 500nA |
| Length | 1.7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 4A |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 6V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 4A |
| Polarity | Bidirectional, Unidirectional |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 6V |
| RoHS Compliant | Yes |
| Series | SP3004, SPA® |
| Termination | SMD/SMT |
| Working Voltage | 6V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse SP3004-04XTG Datasheet
Download the complete datasheet for Littelfuse SP3004-04XTG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

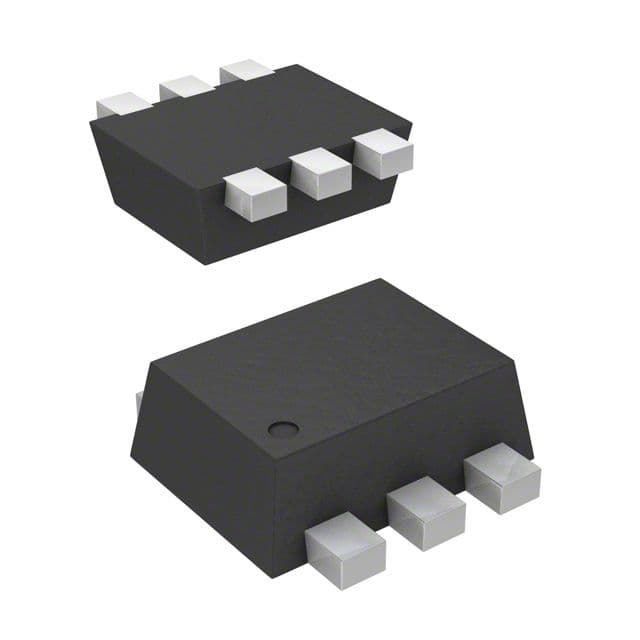

Product Images
