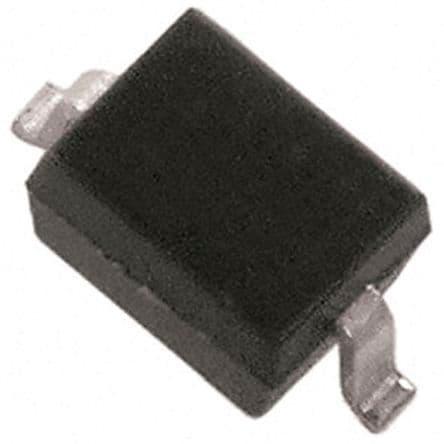

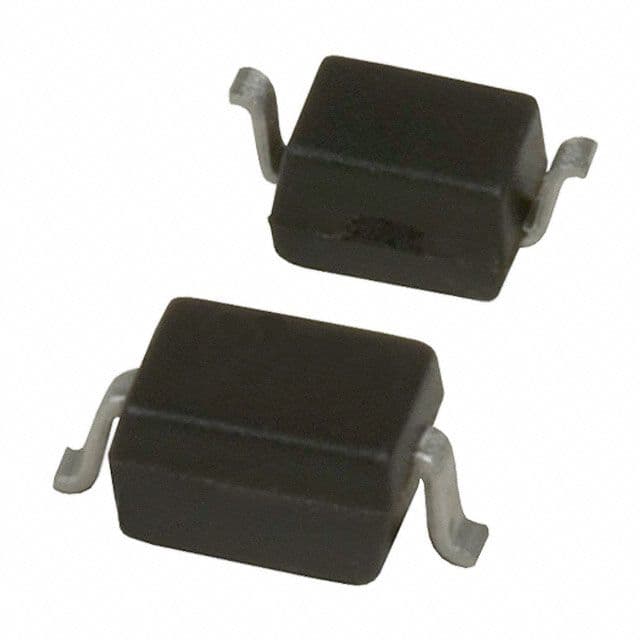

Bidirectional Transient Voltage Suppressor (TVS) diode for surface mount applications. Features a 5V working voltage and 5V reverse standoff voltage, with a minimum breakdown voltage of 6.3V. Offers a clamping voltage of 19.6V and handles a peak pulse current of 24A with a maximum power dissipation of 600W. Operates across a temperature range of -40°C to 125°C. Packaged in tape and reel, this component is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Littelfuse SP4021-01FTG-C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Littelfuse SP4021-01FTG-C technical specifications.
| Clamping Voltage | 19.6V |
| Height | 1mm |
| Lead Free | Contains Lead |
| Leakage Current | 500nA |
| Length | 2.7mm |
| Min Breakdown Voltage | 6.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 600W |
| Max Surge Current | 25A |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 24A |
| Peak Pulse Power | 600W |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 5V |
| RoHS Compliant | Yes |
| Series | SP4021, SPA® |
| Termination | SMD/SMT |
| Width | 1.4mm |
| Working Voltage | 5V |
| RoHS | Compliant |
