Bidirectional transient voltage suppressor (TVS) diode array offering 30V DC rated voltage and 3A max surge current. Features 6 channels, 3pF capacitance, and low 20nA leakage current. Packaged in a lead-free SOIC-8 surface mount case (4mm x 5mm x 1.75mm) with SMD/SMT termination. Operates across a -40°C to 105°C temperature range and is RoHS compliant.
PackageSOIC
Capacitance3pF
Voltage Rating30V
MountingSurface Mount
Quick Jump:
Technical Specifications
Littelfuse SP721ABTG technical specifications.
General
| Capacitance | 3pF |
| Package/Case | SOIC |
| Depth | 4mm |
| Direction | Bidirectional |
| Height | 1.75mm |
| Lead Free | Lead Free |
| Leakage Current | 20nA |
| Length | 5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 3A |
| Mount | Surface Mount |
| Number of Channels | 6 |
| Number of Circuits | 6 |
| Packaging | Tape and Reel |
| Polarity | Bidirectional |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| DC Rated Voltage | 30V |
| Width | 4mm |
| Working Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse SP721ABTG Datasheet
Download the complete datasheet for Littelfuse SP721ABTG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

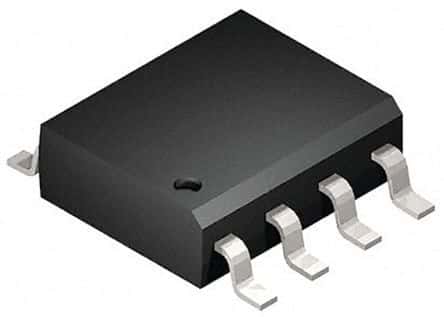

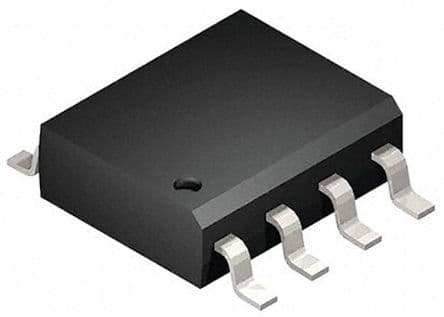

Product Images
