Bidirectional Transient Voltage Suppressor Diode, 200W peak pulse power, 12V reverse standoff voltage, and 19V clamping voltage. Features 1uA leakage current, 30pF capacitance, and 8A peak pulse current. Designed for surface mount with a compact SOD package, operating from -40°C to 125°C. This silicon diode offers 1 bidirectional channel and is RoHS compliant.
PackageSOD
Capacitance30pF
Voltage Rating12V
MountingSurface Mount
Quick Jump:
Technical Specifications
Littelfuse SPHV12-01ETG-C technical specifications.
General
Capacitance
30pF
Package/Case
SOD
Clamping Voltage
19V
Depth
0.6mm
Diode Type
ZENER
Direction
Bidirectional
Leakage Current
1uA
Length
1mm
Min Breakdown Voltage
13.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
200W
Max Surge Current
8A
Mount
Surface Mount
Number of Bidirectional Channels
1
Package Quantity
10000
Packaging
Tape and Reel
Peak Pulse Current
8A
Peak Pulse Power
200W
Polarity
Bidirectional
Power Line Protection
No
Radiation Hardening
No
Reverse Standoff Voltage
12V
RoHS Compliant
Yes
Series
Automotive, AEC-Q101, SPHV-C, SPA®
Termination
SMD/SMT
Working Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Littelfuse SPHV12-01ETG-C Datasheet
Download the complete datasheet for Littelfuse SPHV12-01ETG-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

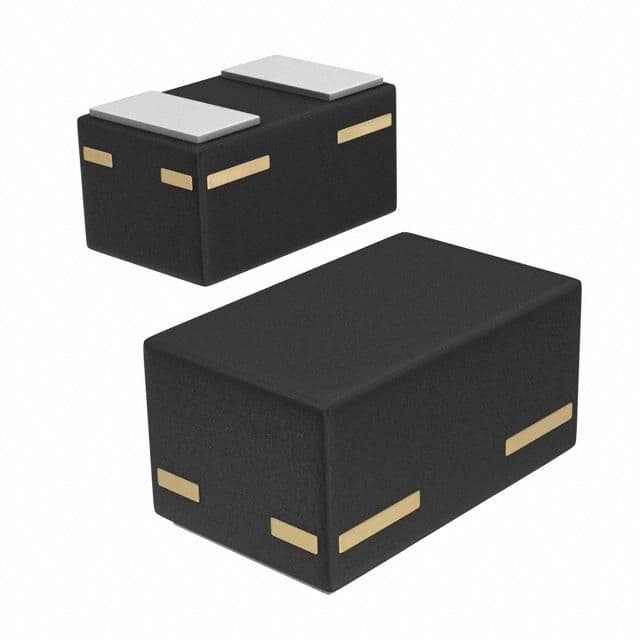

Product Images
