Unidirectional transient voltage suppressor diode offering 150W peak pulse power dissipation and 6V reverse standoff voltage. Features a 15V clamping voltage and 10A peak pulse current capability. This surface mount component, housed in a SOT-23 package, provides ESD protection and operates across a temperature range of -40°C to 85°C with a low leakage current of 500nA. Designed for power line protection, it includes four unidirectional channels.
PackageSOT-23
Capacitance3pF
Voltage Rating6V
MountingSurface Mount
Quick Jump:
Technical Specifications
Littelfuse SRV05-4HTG technical specifications.
General
| Capacitance | 3pF |
| Package/Case | SOT-23 |
| Clamping Voltage | 15V |
| Clamping Voltage-Max | 15V |
| Depth | 1.75mm |
| Direction | Unidirectional, Bidirectional |
| ESD Protection | Yes |
| Height | 0.15mm |
| Lead Free | Lead Free |
| Leakage Current | 500nA |
| Length | 3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 150W |
| Max Reverse Leakage Current | 500nA |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 6V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 10A |
| Peak Pulse Power | 150W |
| Polarity | Bidirectional |
| Power Dissipation | 150W |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 6V |
| RoHS Compliant | Yes |
| Series | SRV05, SPA® |
| Termination | SMD/SMT |
| Width | 1.75mm |
| Working Voltage | 6V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse SRV05-4HTG Datasheet
Download the complete datasheet for Littelfuse SRV05-4HTG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

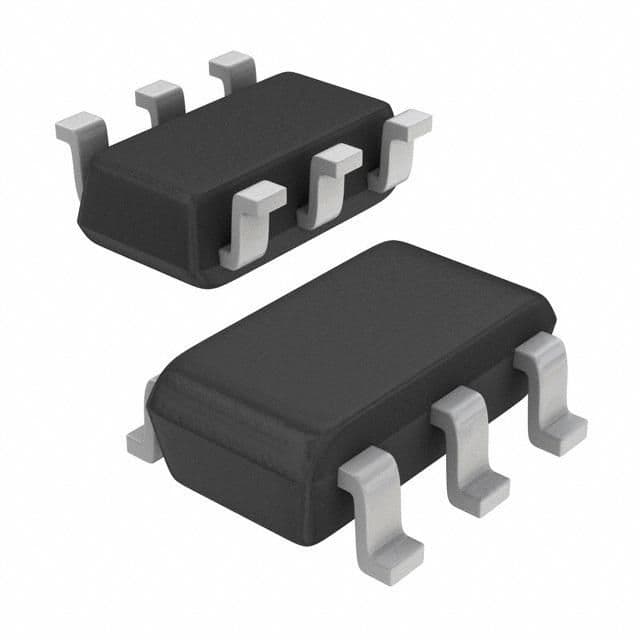

Product Images
