Surface mount varistor, 18V DC rated voltage, 42V AC voltage rating, and 55V AC voltage rating. Features 1A clamping current, 55V clamping voltage, and 125V maximum clamping voltage. Capacitance of 12pF, inductance of 1nH, and leakage current of 500nA. Housed in a 0603 (1608 metric) ceramic case with SMD/SMT termination, operating from -55°C to 125°C. RoHS compliant.
Package0603
Capacitance12pF
Voltage Rating42V
MountingSurface Mount
Quick Jump:
Technical Specifications
Littelfuse V0603MHS12NH technical specifications.
General
| Capacitance | 12pF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Clamping Current | 1A |
| Clamping Voltage | 55V |
| Clamping Voltage-Max | 125V |
| Depth | 0.8mm |
| Energy | 0.015J |
| Inductance | 1nH |
| Lead Free | Lead Free |
| Leakage Current | 500nA |
| Length | 1.6mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 1A |
| Max Voltage Rating (DC) | 18V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MHS |
| Size Code | 0603 |
| Termination | SMD/SMT |
| Thickness | 1mm |
| Voltage Rating | 42V |
| Voltage Rating (AC) | 55V |
| DC Rated Voltage | 18V |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse V0603MHS12NH Datasheet
Download the complete datasheet for Littelfuse V0603MHS12NH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

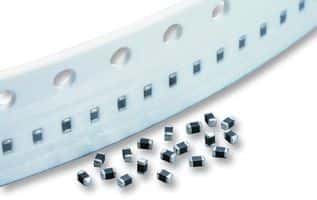

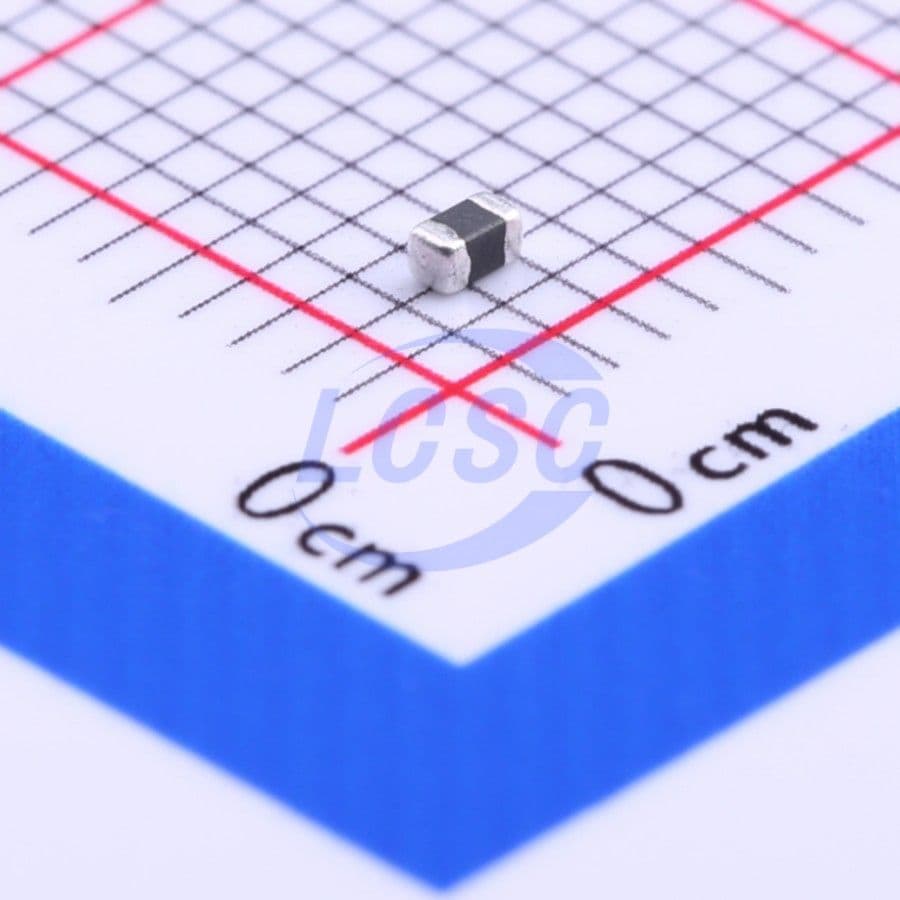

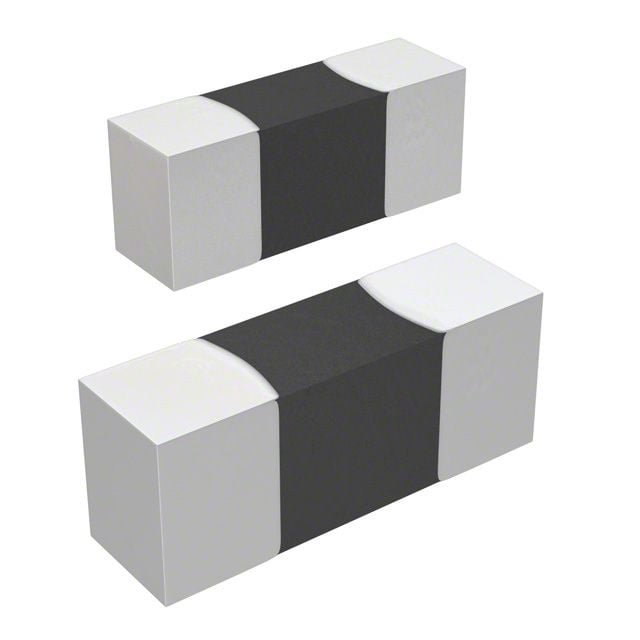

Product Images
