Radial leaded varistor for general purpose applications, featuring a 175V DC voltage rating and 130V AC voltage rating. Offers 270 Joules of energy absorption with a clamping current of 200A and a maximum surge current of 40kA. This chassis mount component has a varistor voltage of 205V and a capacitance of 10nF, with a lead pitch of 40.5mm. Operating temperature range is -55°C to 85°C.
PackageMetal
Capacitance10nF
Voltage Rating175V
MountingSurface Mount, Chassis Mount, Bolt
Quick Jump:
Technical Specifications
Littelfuse V131DB40 technical specifications.
General
| Capacitance | 10nF |
| Package/Case | Metal |
| Clamping Current | 200A |
| Clamping Voltage | 345V |
| Clamping Voltage-Max | 345V |
| Depth | 46.8mm |
| Energy | 270J |
| Lead Free | Contains Lead |
| Lead Pitch | 40.5mm |
| Lead/Base Style | Solder |
| Length | 60.3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 40kA |
| Max Surge Current | 40kA |
| Max Varistor Voltage | 225.5V |
| Min Varistor Voltage | 184.5V |
| Max Voltage Rating (AC) | 130V |
| Max Voltage Rating (DC) | 175V |
| Mount | Surface Mount, Chassis Mount, Bolt |
| Number of Circuits | 1 |
| Package Quantity | 10 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | DB |
| Termination | Screw |
| Varistor Voltage | 205V |
| Voltage Rating | 175V |
| Voltage Rating (AC) | 130V |
| DC Rated Voltage | 175V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse V131DB40 Datasheet
Download the complete datasheet for Littelfuse V131DB40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

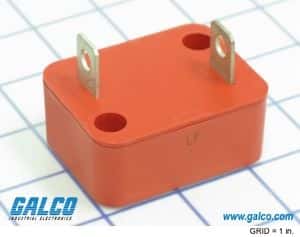

Product Images
