Radial leaded varistor for through-hole mounting, featuring a 385V DC rated voltage and 300V AC rated voltage. This component offers 125 Joules of energy absorption, a 50A clamping current, and a maximum surge current of 6kA. With a varistor voltage range of 423V to 517V, it provides protection up to 775V clamping voltage. The device is halogen-free and RoHS compliant, with a 14mm diameter and 8.5mm lead pitch.
PackageRadial
Capacitance400pF
Voltage Rating385V
Current Rating50A
Quick Jump:
Technical Specifications
Littelfuse V14E300P technical specifications.
General
| Capacitance | 400pF |
| Package/Case | Radial |
| Clamping Current | 50A |
| Clamping Voltage | 775V |
| Clamping Voltage-Max | 775V |
| Current Rating | 50A |
| Depth | 5.6mm |
| Diameter | 14mm |
| Energy | 125J |
| Lead Free | Lead Free |
| Lead Length | 25.4mm |
| Lead Pitch | 8.5mm |
| Lead/Base Style | Radial |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 4.5kA |
| Max Surge Current | 6kA |
| Max Varistor Voltage | 517V |
| Min Varistor Voltage | 423V |
| Max Voltage Rating (AC) | 300V |
| Max Voltage Rating (DC) | 385V |
| Mount | Radial, Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 600 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | UltraMOV™ |
| Termination | Radial |
| Varistor Voltage | 517V |
| Voltage Rating | 385V |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 385V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse V14E300P Datasheet
Download the complete datasheet for Littelfuse V14E300P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

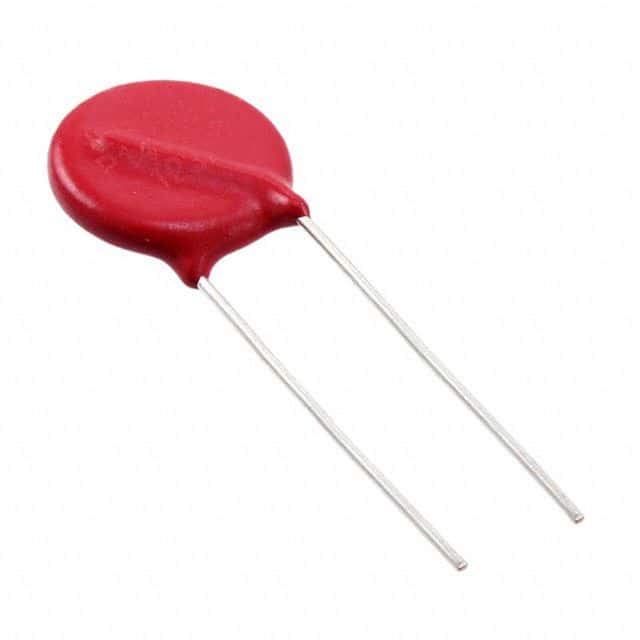

Product Images
