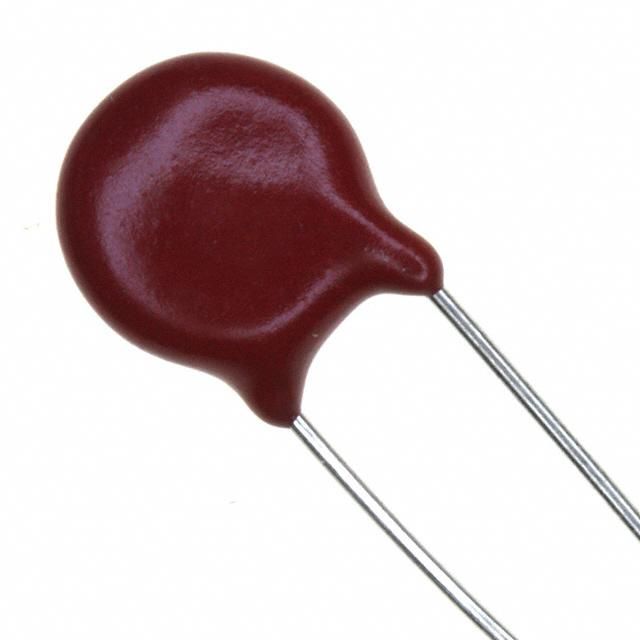

Radial leaded varistor for through-hole mounting, featuring a 200V DC rating and 150V AC rating. Offers 13 Joules of energy absorption with a 1.2kA maximum surge current capability. Clamping voltage is 395V, with a varistor voltage range of 216V to 264V. Operating temperature range spans -55°C to 85°C. This component is halogen-free and RoHS compliant.
PackageRadial
Capacitance150pF
Voltage Rating200V
Current Rating1.2kA
Quick Jump:
Technical Specifications
Littelfuse V150LS2P technical specifications.
General
Capacitance
150pF
Package/Case
Radial
Clamping Current
10A
Clamping Voltage
395V
Clamping Voltage-Max
395V
Current Rating
1.2kA
Depth
5.6mm
Diameter
7mm
Energy
13J
ESD Protection
No
Height
12mm
Lead Free
Lead Free
Lead Pitch
6mm
Lead/Base Style
Radial
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Output Current
1.2kA
Max Surge Current
1.2kA
Max Varistor Voltage
264V
Min Varistor Voltage
216V
Max Voltage Rating (AC)
150V
Max Voltage Rating (DC)
200V
Mount
Through Hole
Number of Circuits
1
Package Quantity
1000
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
LS
Termination
Radial
Varistor Voltage
268V
Voltage Rating
200V
Voltage Rating (AC)
150V
DC Rated Voltage
200V
Width
5.6mm
Compliance
RoHS
Compliant
