Radial leaded metal oxide varistor (MOV) for overvoltage and ESD protection. Features a 275VAC/369VDC voltage rating, 2.5kA current rating, and 473V maximum varistor voltage. Offers 45J energy absorption and a 25A clamping current at 710V. With a 10mm diameter and 8.5mm lead pitch, this RoHS compliant component operates from -55°C to 85°C.
Capacitance200pF
Voltage Rating369V
Current Rating2.5kA
MountingRadial, Through Hole
Quick Jump:
Technical Specifications
Littelfuse V275LA10P technical specifications.
General
Capacitance
200pF
Clamping Current
25A
Clamping Voltage
710V
Clamping Voltage-Max
710V
Current Rating
2.5kA
Depth
5.6mm
Diameter
10mm
Energy
45J
ESD Protection
No
Height
16mm
Lead Free
Lead Free
Lead Length
25.4mm
Lead Pitch
8.5mm
Lead/Base Style
Radial
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Output Current
2.5kA
Max Surge Current
2.5kA
Max Varistor Voltage
473V
Min Varistor Voltage
387V
Max Voltage Rating (AC)
275V
Max Voltage Rating (DC)
369V
Mount
Radial, Through Hole
Number of Circuits
1
Package Quantity
1000
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
LA
Termination
Radial
Thickness
5.6mm
Tolerance
10%
Varistor Voltage
473V
Voltage Rating
369V
Voltage Rating (AC)
275V
DC Rated Voltage
369V
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse V275LA10P Datasheet
Download the complete datasheet for Littelfuse V275LA10P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

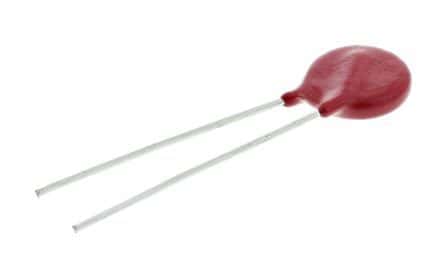

Product Images
