Radial leaded varistor for through-hole mounting, featuring a 275V AC / 369V DC voltage rating and 23J energy absorption. This component offers a 10A clamping current, 710V clamping voltage, and a maximum surge current of 1.2kA. With a 80pF capacitance and operating temperature range of -55°C to 85°C, it is halogen-free and RoHS compliant.
PackageMetal
Capacitance80pF
Voltage Rating369V
Current Rating1.2kA
Quick Jump:
Technical Specifications
Littelfuse V275LT4P technical specifications.
General
Capacitance
80pF
Package/Case
Metal
Clamping Current
10A
Clamping Voltage
710V
Clamping Voltage-Max
710V
Current Rating
1.2kA
Depth
5.6mm
Diameter
7mm
Energy
23J
Lead Free
Lead Free
Lead Pitch
6mm
Lead/Base Style
Radial
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Output Current
1.2kA
Max Surge Current
1.2kA
Max Varistor Voltage
473V
Min Varistor Voltage
387V
Max Voltage Rating (AC)
275V
Max Voltage Rating (DC)
369V
Mount
Through Hole, Radial
Number of Circuits
1
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LT
Termination
Radial
Tolerance
10%
Varistor Voltage
473V
Voltage Rating
369V
Voltage Rating (AC)
275V
DC Rated Voltage
369V
Compliance
RoHS
Compliant
Datasheet
Littelfuse V275LT4P Datasheet
Download the complete datasheet for Littelfuse V275LT4P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

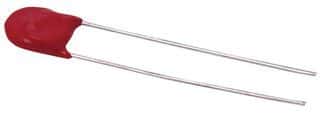

Product Images
