Radial leaded varistor for through-hole mounting, featuring a 27V DC rated voltage and 21V AC rated voltage. Offers 150 Joules of energy absorption and a 2kA maximum surge current capability. Clamping voltage is 58V with a clamping current of 20A. Operates across a wide temperature range from -55°C to 85°C. This component is halogen-free and RoHS compliant.
Capacitance13nF
Voltage Rating27V
Current Rating2kA
MountingRadial, Through Hole
Quick Jump:
Technical Specifications
Littelfuse V33ZA70P technical specifications.
General
| Capacitance | 13nF |
| Clamping Current | 20A |
| Clamping Voltage | 58V |
| Clamping Voltage-Max | 58V |
| Current Rating | 2kA |
| Depth | 5mm |
| Diameter | 20mm |
| Energy | 150J |
| Lead Free | Lead Free |
| Lead Pitch | 8.5mm |
| Lead/Base Style | Radial |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 2kA |
| Max Surge Current | 2kA |
| Max Varistor Voltage | 36.3V |
| Min Varistor Voltage | 29.7V |
| Max Voltage Rating (AC) | 21V |
| Max Voltage Rating (DC) | 27V |
| Mount | Radial, Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 500 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ZA |
| Termination | Radial |
| Thickness | 5mm |
| Varistor Voltage | 36.5V |
| Voltage Rating | 27V |
| Voltage Rating (AC) | 21V |
| DC Rated Voltage | 27V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse V33ZA70P Datasheet
Download the complete datasheet for Littelfuse V33ZA70P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

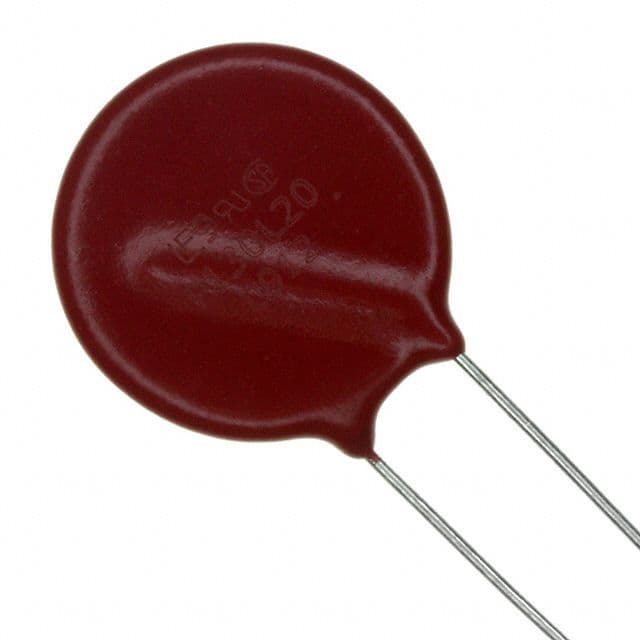

Product Images
