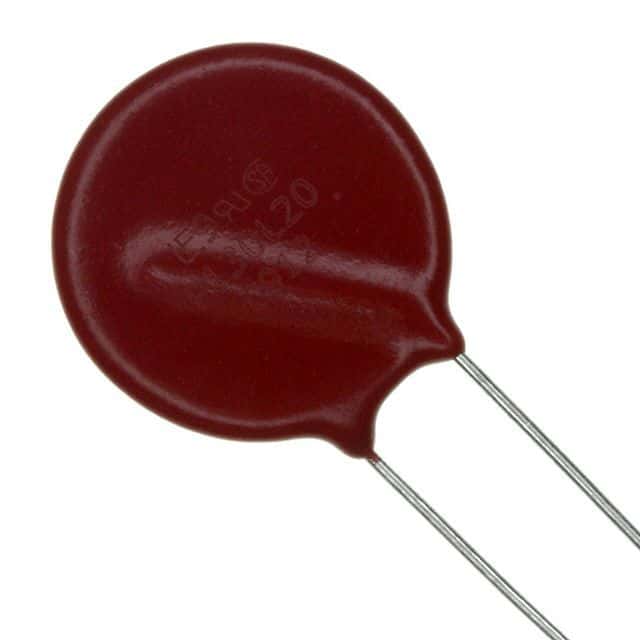

Radial leaded metal oxide varistor (MOV) for circuit protection. Features a 23VAC/31VDC voltage rating, 2kA surge current capability, and 160J energy absorption. Offers a 39.6V maximum varistor voltage with a 20A clamping current at 63V. Designed with a 8.5mm lead pitch and 5mm diameter, this RoHS compliant component operates from -55°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Littelfuse V36ZA80P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Littelfuse V36ZA80P technical specifications.
| Capacitance | 12nF |
| Clamping Current | 20A |
| Clamping Voltage | 63V |
| Clamping Voltage-Max | 63V |
| Current Rating | 2kA |
| Depth | 5mm |
| Diameter | 20mm |
| Energy | 160J |
| Lead Free | Lead Free |
| Lead Pitch | 8.5mm |
| Lead/Base Style | Radial |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 2kA |
| Max Surge Current | 2kA |
| Max Varistor Voltage | 39.6V |
| Min Varistor Voltage | 32.4V |
| Max Voltage Rating (AC) | 23V |
| Max Voltage Rating (DC) | 31V |
| Mount | Radial, Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 500 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ZA |
| Termination | Radial |
| Thickness | 5mm |
| Tolerance | 10% |
| Varistor Voltage | 40V |
| Voltage Rating | 31V |
| Voltage Rating (AC) | 23V |
| DC Rated Voltage | 31V |
| RoHS | Compliant |
