Surface mount metal oxide varistor (MOV) for circuit protection. Features a 275VAC / 369VDC maximum voltage rating and 430V varistor voltage. Offers a 10A clamping current and 250A maximum surge current capability. Operates across a -55°C to 125°C temperature range with 8J energy absorption. Packaged in tape and reel for automated assembly.
PackageSMD/SMT
Capacitance80pF
Voltage Rating369V
Current Rating10A
Quick Jump:
Technical Specifications
Littelfuse V430CH8T technical specifications.
General
Capacitance
80pF
Case Code (Imperial)
3220
Case Code (Metric)
8552
Package/Case
SMD/SMT
Clamping Current
10A
Clamping Voltage
710V
Clamping Voltage-Max
710V
Current Rating
10A
Depth
5.26mm
Energy
8J
ESD Protection
No
Height
2.03mm
Lead Free
Lead Free
Length
8.51mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
250A
Max Surge Current
250A
Max Varistor Voltage
473V
Min Varistor Voltage
389V
Max Voltage Rating (AC)
275V
Max Voltage Rating (DC)
369V
Mount
Surface Mount
Number of Circuits
1
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
CH
Termination
SMD/SMT
Thickness
2.03mm
Varistor Voltage
430V
Voltage Rating
369V
Voltage Rating (AC)
275V
DC Rated Voltage
369V
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse V430CH8T Datasheet
Download the complete datasheet for Littelfuse V430CH8T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

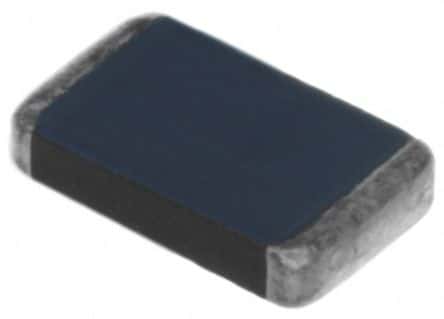

Product Images
