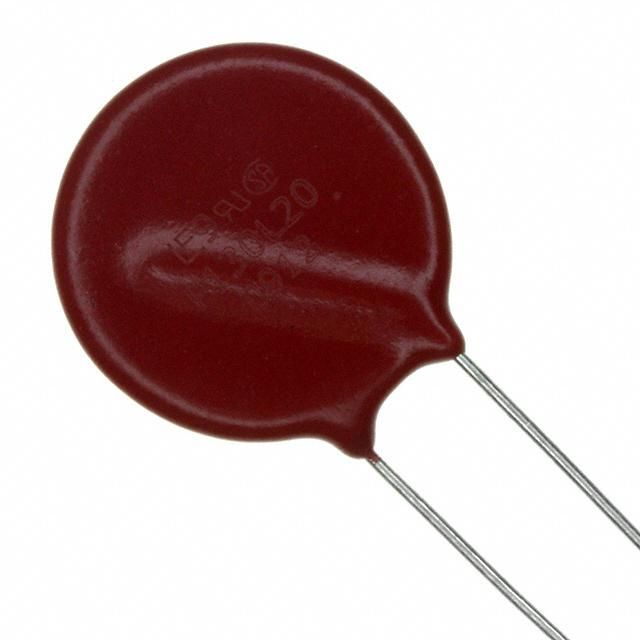

Radial leaded varistor for through-hole mounting, featuring a 550V AC/DC voltage rating and 970V varistor voltage. This component offers 450 Joules of energy absorption and a 100A clamping current, with a maximum surge current of 9kA. It operates across a wide temperature range from -55°C to 85°C and has a capacitance of 2.5nF. The device is halogen-free and RoHS compliant.
PackageRadial
Capacitance2.5nF
MountingThrough Hole, Radial
Quick Jump:
Technical Specifications
Littelfuse V550LA80CP technical specifications.
General
| Capacitance | 2.5nF |
| Package/Case | Radial |
| Clamping Current | 100A |
| Clamping Voltage | 1.435kV |
| Depth | 11mm |
| Diameter | 20mm |
| Energy | 450J |
| Lead Free | Lead Free |
| Lead Pitch | 8.5mm |
| Lead/Base Style | Radial |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Surge Current | 9kA |
| Max Varistor Voltage | 968V |
| Min Varistor Voltage | 792V |
| Max Voltage Rating (AC) | 550V |
| Mount | Through Hole, Radial |
| Number of Circuits | 1 |
| Package Quantity | 200 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | C-III |
| Termination | Radial |
| Varistor Voltage | 970V |
| Voltage Rating (AC) | 550V |
| DC Rated Voltage | 550V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse V550LA80CP Datasheet
Download the complete datasheet for Littelfuse V550LA80CP to view detailed technical specifications.
