Rotary switch featuring 12 positions and 1 pole, designed for panel mounting with solder lug terminations. Offers a 30° index angle and a non-shorting throw configuration. Contact current rating is 150mA with a 250VAC voltage rating, and a general current rating of 350mA. Constructed with brass contacts and silver plating, operating within a temperature range of -30°C to 85°C. Features a 6mm shaft and UL94 V-0 flammability rating.
Voltage Rating300V
Current Rating350mA
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
Lorlin CK1029 technical specifications.
General
| Contact Current Rating | 150mA |
| Contact Material | Brass, Silver |
| Contact Plating | Silver |
| Current Rating | 350mA |
| Depth | 27.5mm |
| Flammability Rating | UL94 V-0 |
| Height | 71.1mm |
| Illumination Type | Illuminated |
| Index Angle | 30° |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 250V |
| Mount | Through Hole, Panel |
| Number of Contacts | 1 |
| Number of Decks | 1 |
| Number of Poles | 1 |
| Number of Poles per Deck | 1 |
| Number of Positions | 12 |
| Package Quantity | 50 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Solder |
| Throw Configuration | SP12T |
| Voltage Rating | 300V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 27.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Lorlin CK1029 Datasheet
Download the complete datasheet for Lorlin CK1029 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

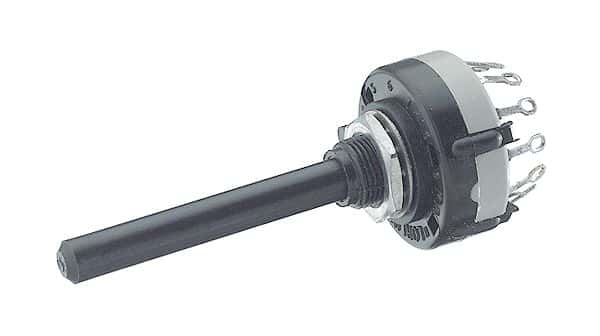

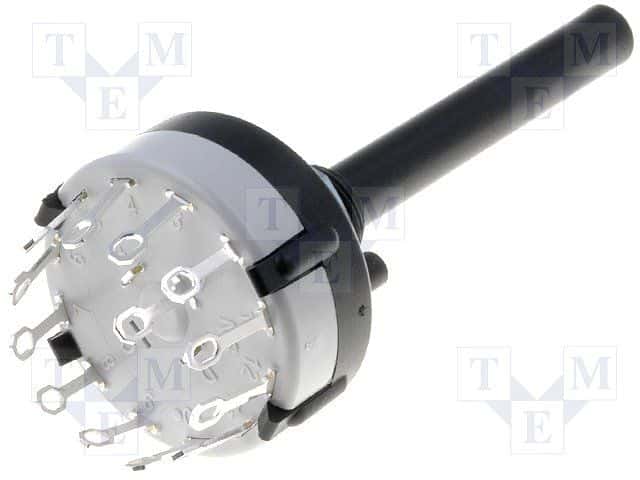

Product Images
