Technical Specifications
Lorlin RMS1035 technical specifications.
General
| Contact Material | Silver, Cadmium |
| Contact Plating | Silver |
| Current Rating | 10A |
| Illumination Type | Illuminated |
| Index Angle | 45° |
| Material | Polybutylene |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 12V |
| Mount | Panel |
| Number of Decks | 1 |
| Number of Poles | 2 |
| Number of Poles per Deck | 2 |
| Package Quantity | 50 |
| Reach SVHC Compliant | No |
| Termination | Solder |
| Throw Configuration | DP |
| Voltage Rating | 12V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
Lorlin RMS1035 Datasheet
Download the complete datasheet for Lorlin RMS1035 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

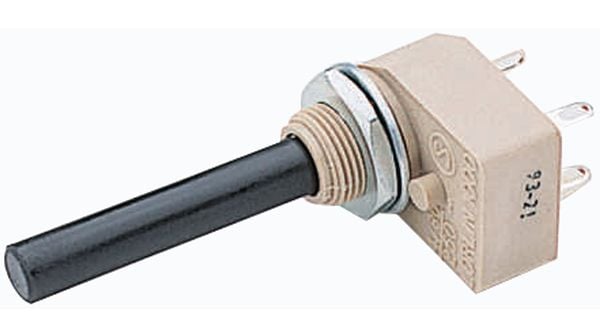

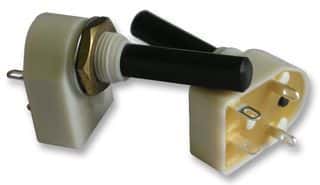

Product Images
