Technical Specifications
Lorlin SRL-5-L-S-2 technical specifications.
General
| Contact Material | Brass, Silver |
| Contact Type | 2 change-overs |
| Index Angle | 60° |
| Material | Metal |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 115V |
| Max Voltage Rating (DC) | 50V |
| Mount | Panel |
| Reach SVHC Compliant | No |
| Termination | Solder |
| Throw Configuration | DPDT |
Compliance
| RoHS | Compliant |
Datasheet
Lorlin SRL-5-L-S-2 Datasheet
Download the complete datasheet for Lorlin SRL-5-L-S-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

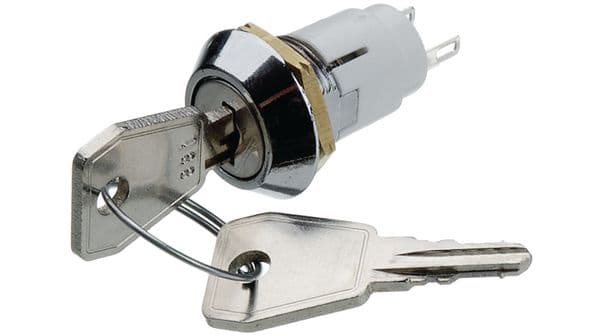

Product Images
