32Mb Serial NOR Flash memory, operating at up to 86MHz. This non-volatile memory component features a 3.6V nominal supply voltage and an industrial temperature grade, ranging from -40°C to 85°C. Designed for surface mounting, it is housed in a PDSO8 package with dimensions of 4 x 4 mm, a 0.60 mm height, and a 0.80 mm pitch. The component is lead-free and RoHS compliant.
Frequency86MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Macronix MX25L3206EZUI-12G technical specifications.
General
Density
32Mb
Frequency
86MHz
Lead Free
Lead Free
Max Frequency
86MHz
Max Operating Temperature
85°C
Memory Size
32Mb
Memory Type
Non-Volatile, , FLASH
Min Operating Temperature
-40°C
Mount
Surface Mount
RoHS Compliant
Yes
Series
MX25xxx05/06/08
Supply Voltage-Nom
3.6V
Temperature Grade
INDUSTRIAL
Compliance
RoHS
Compliant
Datasheet
Macronix MX25L3206EZUI-12G Datasheet
Download the complete datasheet for Macronix MX25L3206EZUI-12G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

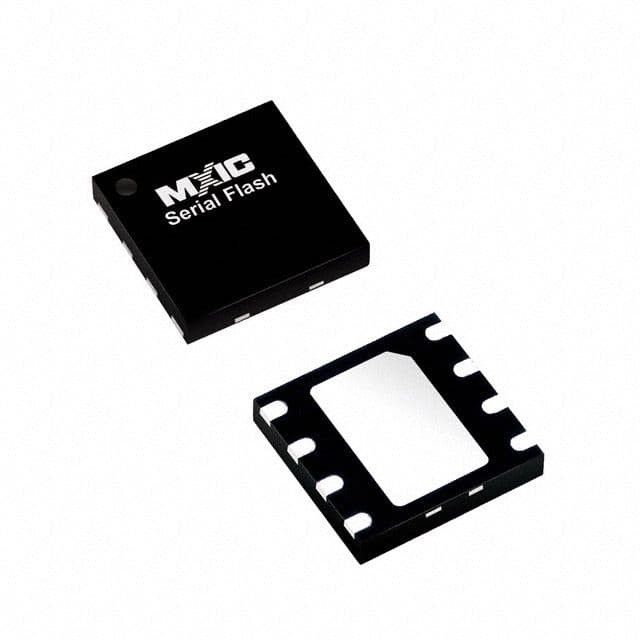

Product Images
