64Mb Serial NOR Flash memory, operating at up to 86MHz. This non-volatile memory component features a 3.6V supply voltage and is housed in a 16-pin SOIC package, suitable for surface mounting. Designed for industrial temperature ranges from -40°C to 85°C, it is lead-free and RoHS compliant.
Frequency86MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Macronix MX25L6406EMI-12G technical specifications.
General
Package/Case
SOIC
Density
64Mb
Frequency
86MHz
Lead Free
Lead Free
Max Frequency
86MHz
Max Operating Temperature
85°C
Memory Size
64Mb
Memory Type
Non-Volatile, , FLASH
Min Operating Temperature
-40°C
Mount
Surface Mount
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
MX25xxx05/06/08
Supply Voltage-Nom
3.6V
Temperature Grade
INDUSTRIAL
Compliance
RoHS
Compliant
Datasheet
Macronix MX25L6406EMI-12G Datasheet
Download the complete datasheet for Macronix MX25L6406EMI-12G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

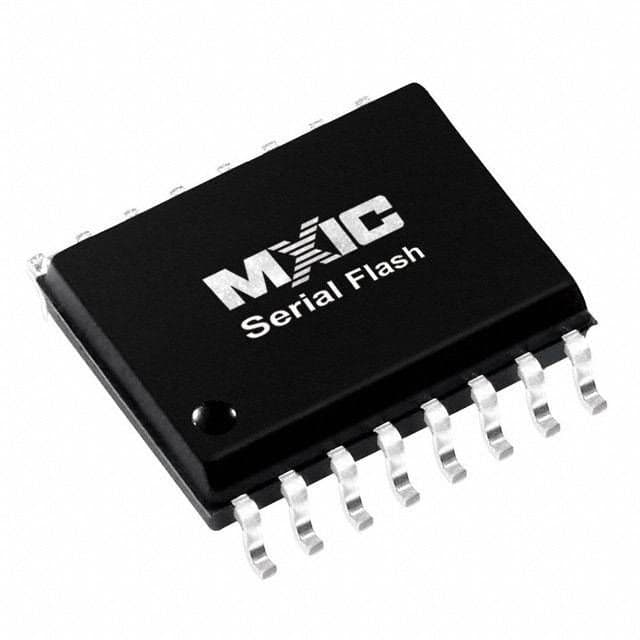

Product Images
