16Mb NOR Flash memory with a 70ns maximum access time. Features a parallel interface and operates from a nominal 3.6V supply. Packaged in a 48-pin TSOP (Thin Small Outline Package) with dimensions of 20 x 12 mm. This component is RoHS compliant and suitable for operation across a temperature range of -40°C to 85°C.
PackageTFSOP
Quick Jump:
Technical Specifications
Macronix MX29LV160DTTI-70G technical specifications.
General
| Access Time-Max | 70ns |
| Package/Case | TFSOP |
| Density | 16Mb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Memory Type | FLASH, , NOR |
| Min Operating Temperature | -40°C |
| Package Quantity | 96 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | MX29LV |
| Supply Voltage-Nom | 3.6V |
Compliance
| RoHS | Compliant |
Datasheet
Macronix MX29LV160DTTI-70G Datasheet
Download the complete datasheet for Macronix MX29LV160DTTI-70G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

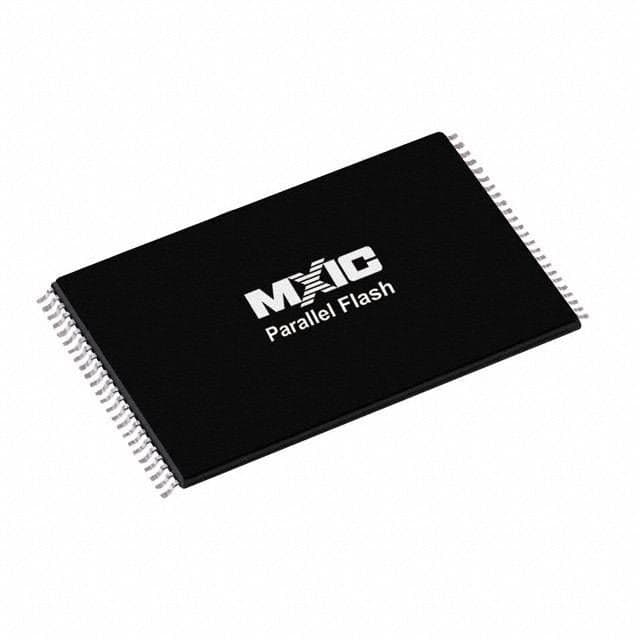

Product Images
