Round, brown audio piezo transducer for surface mount applications. Features a 4kHz frequency and 10nF capacitance, operating within a 3V to 15V supply voltage range. Rated for 1.5mA current, it is lead-free and designed for temperatures from -20°C to 70°C. Packaged in rail/tube, this component has a 17mm diameter and 5mm height.
Frequency4kHz
PackageSMD/SMT
Capacitance10nF
Voltage Rating5V
Quick Jump:
Technical Specifications
Mallory Sonalert AST100Q technical specifications.
General
| Capacitance | 10nF |
| Package/Case | SMD/SMT |
| Color | Brown |
| Current Rating | 1.5mA |
| Depth | 5mm |
| Diameter | 17mm |
| Frequency | 4kHz |
| Height | 5mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Supply Current | 1.5mA |
| Max Supply Voltage | 15V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Operating Supply Current | 1.5mA |
| Operating Supply Voltage | 5V |
| Outside Diameter | 17.5mm |
| Packaging | Rail/Tube |
| Self Resonant Frequency | 4kHz |
| Series | AST |
| Shape | Round |
| Termination | SMD/SMT |
| Voltage Rating | 5V |
| Weight | 1.4g |
Compliance
| RoHS | Compliant |
Datasheet
Mallory Sonalert AST100Q Datasheet
Download the complete datasheet for Mallory Sonalert AST100Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

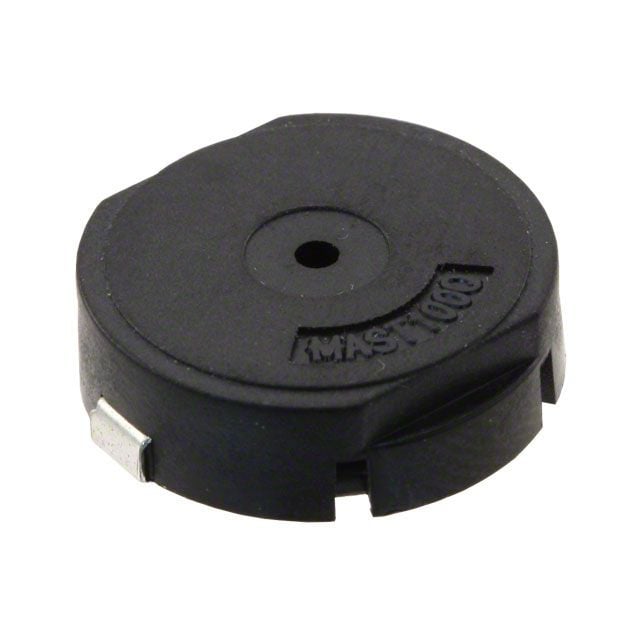

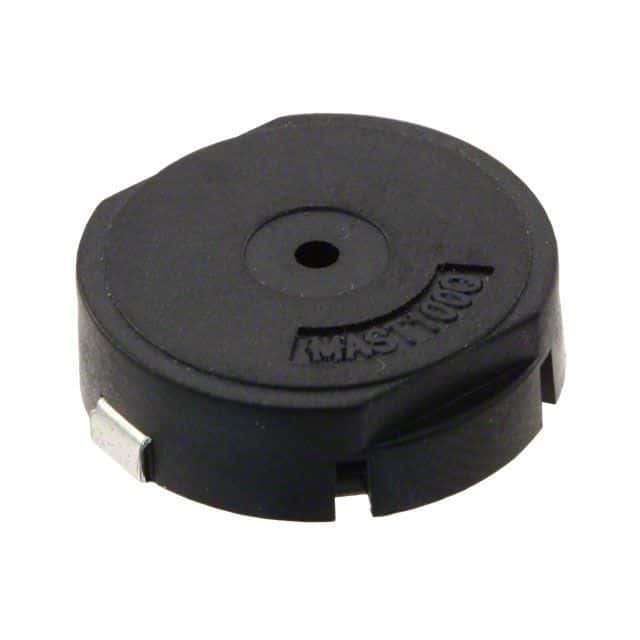

Product Images
