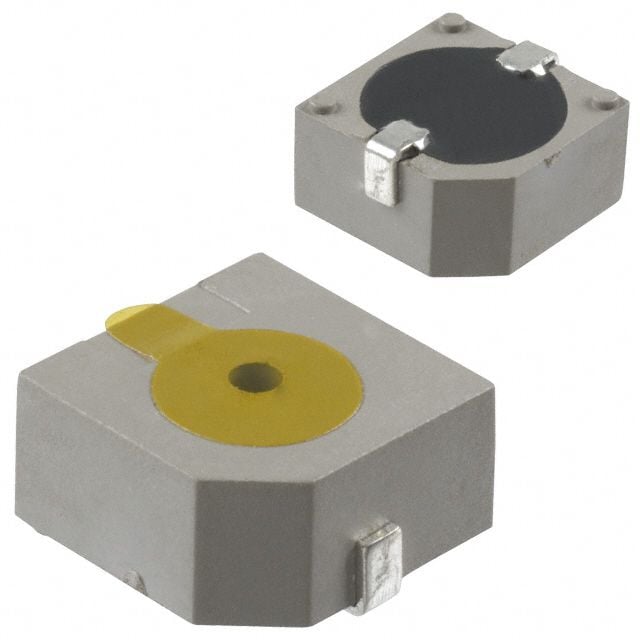

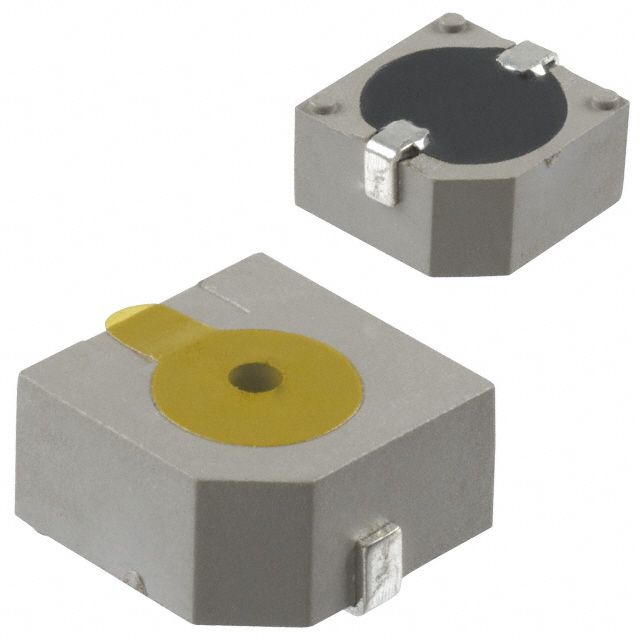

Surface mount audio magnetic transducer operating between 4V and 7V DC. Features a 2.4kHz frequency and 50mA current rating. Constructed with lead-free materials, this component measures 12.6mm in length and width, with a 7.5mm height. Suitable for operation across a -40°C to 85°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Mallory Sonalert AST605Q datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Grey |
| Current Rating | 50mA |
| Frequency | 2.4kHz |
| Height | 7.5mm |
| Lead Free | Lead Free |
| Length | 12.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 7V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Operating Supply Current | 50mA |
| Package Quantity | 35 |
| Packaging | Rail/Tube |
| Self Resonant Frequency | 2.4kHz |
| Series | AST |
| Termination | Solder |
| Voltage Rating | 5V |
| DC Rated Voltage | 5V |
| Weight | 0.091712oz |
| Width | 12.6mm |
| RoHS | Compliant |
