Surface mount audio indicator with a 2.7kHz frequency and 85dBA sound output. Operates with a minimum supply voltage of 2.5Vp-p and a maximum of 4.5Vp-p, drawing up to 100mA. Features a 3.6V voltage rating and solder pad termination for easy integration. This component is designed for surface mount technology, supplied in tape and reel packaging, and operates within a temperature range of -30°C to 70°C.
Frequency2.7kHz
PackageSMD/SMT
Voltage Rating3.6V
Current Rating100mA
Quick Jump:
Technical Specifications
Mallory Sonalert AST7525MATRQ technical specifications.
General
| Package/Case | SMD/SMT |
| Color | Black |
| Current Rating | 100mA |
| Frequency | 2.7kHz |
| Length | 7.5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Max Supply Voltage | 4.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Operating Supply Current | 100mA |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Self Resonant Frequency | 2.7kHz |
| Series | AST |
| Termination | Solder |
| Voltage Rating | 3.6V |
Compliance
| RoHS | Not Compliant |
Datasheet
Mallory Sonalert AST7525MATRQ Datasheet
Download the complete datasheet for Mallory Sonalert AST7525MATRQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

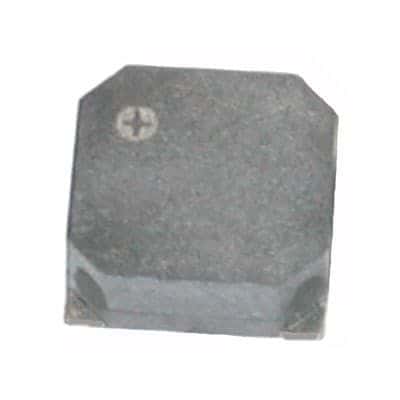

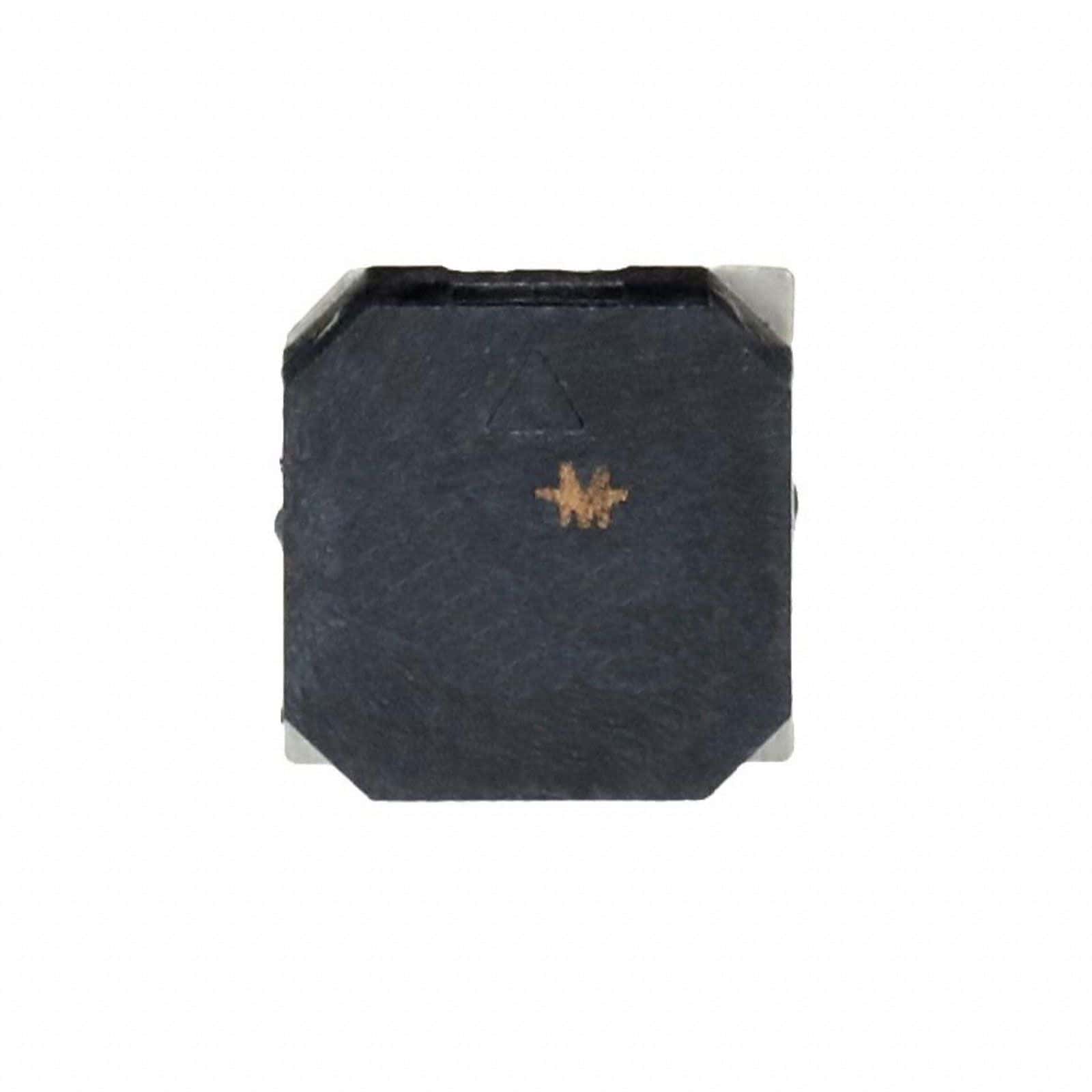

Product Images
