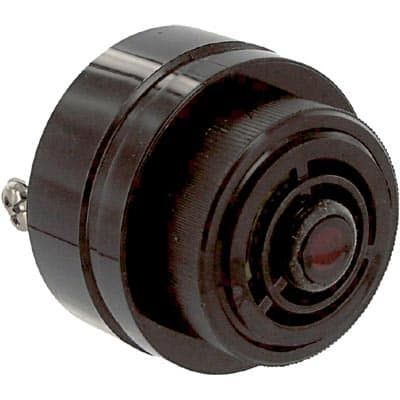

This dynamic speaker has a maximum operating temperature of 65°C and a minimum operating temperature of -30°C. It is rated for a DC voltage of 6V and an operating supply current of 67mA. The speaker has a diameter of 43mm and a length of 20.7mm, and is made of nylon. It is available in bulk packaging and is mounted flush to a panel via a screw termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Mallory Sonalert LSC616 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current Rating | 67mA |
| Diameter | 43mm |
| Frequency | 2.9kHz |
| Input Type | DC |
| Length | 20.7mm |
| Material | Nylon |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -30°C |
| Mount | Flush, Panel |
| Operating Supply Current | 67mA |
| Packaging | Bulk |
| Series | LSC |
| Termination | Screw |
| DC Rated Voltage | 6V |
| Weight | 42.5g |
| RoHS | Not Compliant |
