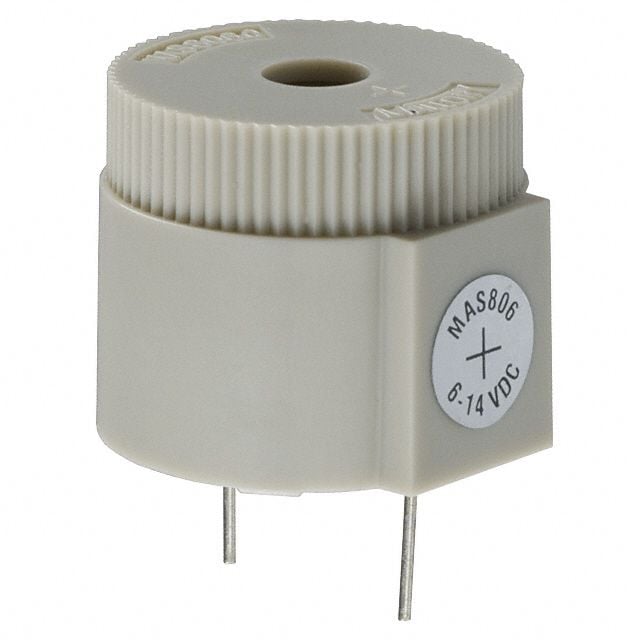

The MAS806Q is a 12V DC rated radial buzzer from Mallory Sonalert with a current rating of 50mA. It operates within a temperature range of -20°C to 90°C and has a self-resonant frequency of 2.8kHz. The buzzer is available in a radial package with a diameter of 26mm and a height of 22mm, suitable for through-hole mounting. It is lead-free and packaged in bulk.
Sign in to ask questions about the Mallory Sonalert MAS806Q datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Mallory Sonalert MAS806Q technical specifications.
| Package/Case | Radial |
| Color | Grey |
| Current Rating | 50mA |
| Diameter | 26mm |
| Frequency | 2.8kHz |
| Height | 22mm |
| Input Type | DC |
| Lead Free | Lead Free |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage | 14V |
| Min Supply Voltage | 6V |
| Mount | Through Hole, Flush |
| Operating Supply Current | 50mA |
| Outside Diameter | 26mm |
| Packaging | Bulk |
| Self Resonant Frequency | 2.8kHz |
| Series | MAS |
| Termination | PC Pins |
| Voltage Rating | 12V |
| DC Rated Voltage | 12V |
| Weight | 10g |
| RoHS | Compliant |
