Audio Indicators & Alerts CONSTANT, 3-20VDC OCTAGON + SEALED
Frequency3.5kHz
Current Rating16mA
MountingThrough Hole, Flush
Quick Jump:
Technical Specifications
Mallory Sonalert MSO320SR technical specifications.
General
| Current Rating | 16mA |
| Frequency | 3.5kHz |
| Height | 13.1mm |
| Input Type | DC |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, Flush |
| Operating Supply Current | 16mA |
| Package Quantity | 1 |
| Packaging | Bulk |
| Series | MSO |
| Termination | PC Pins |
| DC Rated Voltage | 3V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Mallory Sonalert MSO320SR Datasheet
Download the complete datasheet for Mallory Sonalert MSO320SR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

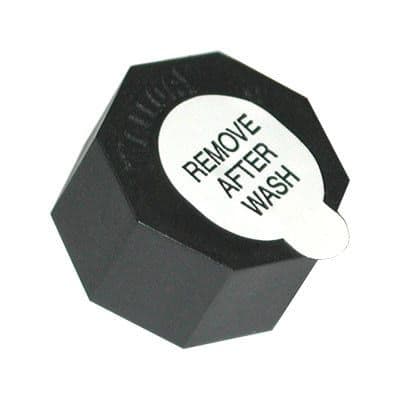

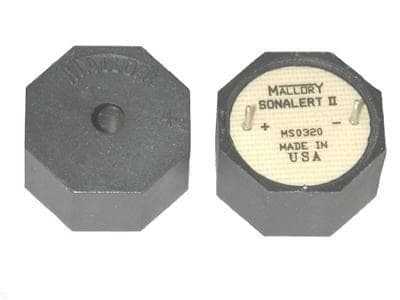

Product Images
