Frequency2.048kHz
Voltage Rating5V
MountingThrough Hole
Quick Jump:
Technical Specifications
Mallory Sonalert PB-1621PQ technical specifications.
General
| Depth | 14mm |
| Diameter | 16mm |
| Frequency | 2.048kHz |
| Height | 14.2mm |
| Length | 16mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operating Supply Current | 60mA |
| Package Quantity | 1 |
| Packaging | Bulk |
| Series | PB |
| Shape | Round |
| Termination | PC Pins |
| Voltage Rating | 5V |
| Washable | Yes |
| Weight | 0.17637oz |
| Width | 16mm |
Compliance
| RoHS | Compliant |
Datasheet
Mallory Sonalert PB-1621PQ Datasheet
Download the complete datasheet for Mallory Sonalert PB-1621PQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

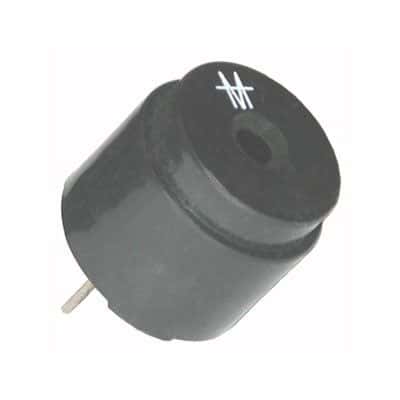

Product Images
