Mallory Sonalert
PLD-21N30PQ
Audio Indicator Piezo 3VDC 30VDC 12mA 12VDC 80dBA 2500Hz to 3500Hz Through Hole Pin Bulk
Frequency3kHz
Voltage Rating12V
Current Rating12mA
MountingThrough Hole, Chassis Mount
Quick Jump:
Technical Specifications
Mallory Sonalert PLD-21N30PQ technical specifications.
General
| Color | Black |
| Current Rating | 12mA |
| Frequency | 3kHz |
| Height | 9.7mm |
| Input Type | DC |
| Length | 24mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, Chassis Mount |
| Operating Supply Current | 12mA |
| Package Quantity | 1 |
| Packaging | Bulk |
| Self Resonant Frequency | 3kHz |
| Series | PLD |
| Termination | PC Pins |
| Voltage Rating | 12V |
| Washable | No |
Compliance
| RoHS | Compliant |
Datasheet
Mallory Sonalert PLD-21N30PQ Datasheet
Download the complete datasheet for Mallory Sonalert PLD-21N30PQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

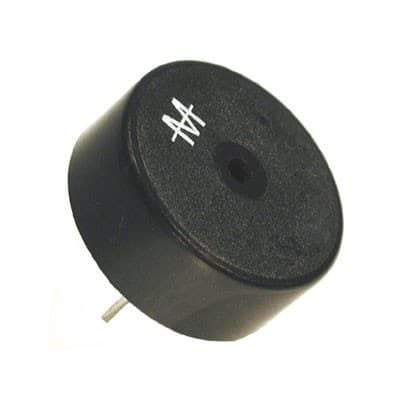

Product Images
