Mallory Sonalert
PSR-11N08S-JQ
General Purpose Miniature Speaker, 8R Impedance, 300mW Power, Round Shape, Solder Termination
The PSR-11N08S-JQ is a general purpose miniature speaker with an impedance of 8 ohms and a maximum power dissipation of 300 milliwatts. It has a round shape and is terminated with solder. The speaker operates within a temperature range of -25°C to 50°C. It is packaged in bulk and is a part of the PSR series.
Frequency1.6kHz
Resistance8R
Quick Jump:
Technical Specifications
Mallory Sonalert PSR-11N08S-JQ technical specifications.
General
| Depth | 4.5mm |
| Diameter | 11mm |
| Frequency | 1.6kHz |
| Impedance | 8R |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -25°C |
| Max Power Dissipation | 300mW |
| Packaging | Bulk |
| Primary Type | Miniature |
| Resistance | 8R |
| Self Resonant Frequency | 1.6kHz |
| Series | PSR |
| Shape | Round |
| Termination | Solder |
| Type | General Purpose |
Compliance
| RoHS | Compliant |
Datasheet
Mallory Sonalert PSR-11N08S-JQ Datasheet
Download the complete datasheet for Mallory Sonalert PSR-11N08S-JQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

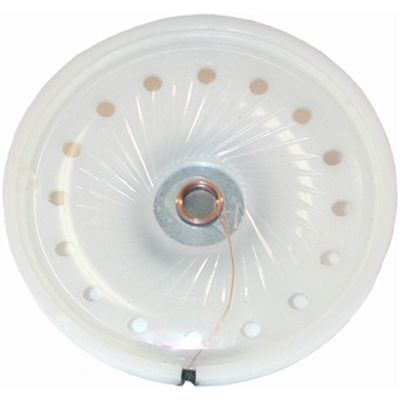

Product Images
