Frequency2kHz
Package120
Current Rating21mA
MountingPanel
Quick Jump:
Technical Specifications
Mallory Sonalert SC110DR technical specifications.
General
| Package/Case | 120 |
| Current Rating | 21mA |
| Diameter | 43mm |
| Frequency | 2kHz |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -30°C |
| Max Supply Current | 21mA |
| Max Supply Voltage | 120V |
| Min Supply Voltage | 30V |
| Mount | Panel |
| Operating Supply Current | 21mA |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Self Resonant Frequency | 1.9kHz |
| Series | SC |
| Termination | Screw |
| Voltage Rating (AC) | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Mallory Sonalert SC110DR Datasheet
Download the complete datasheet for Mallory Sonalert SC110DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

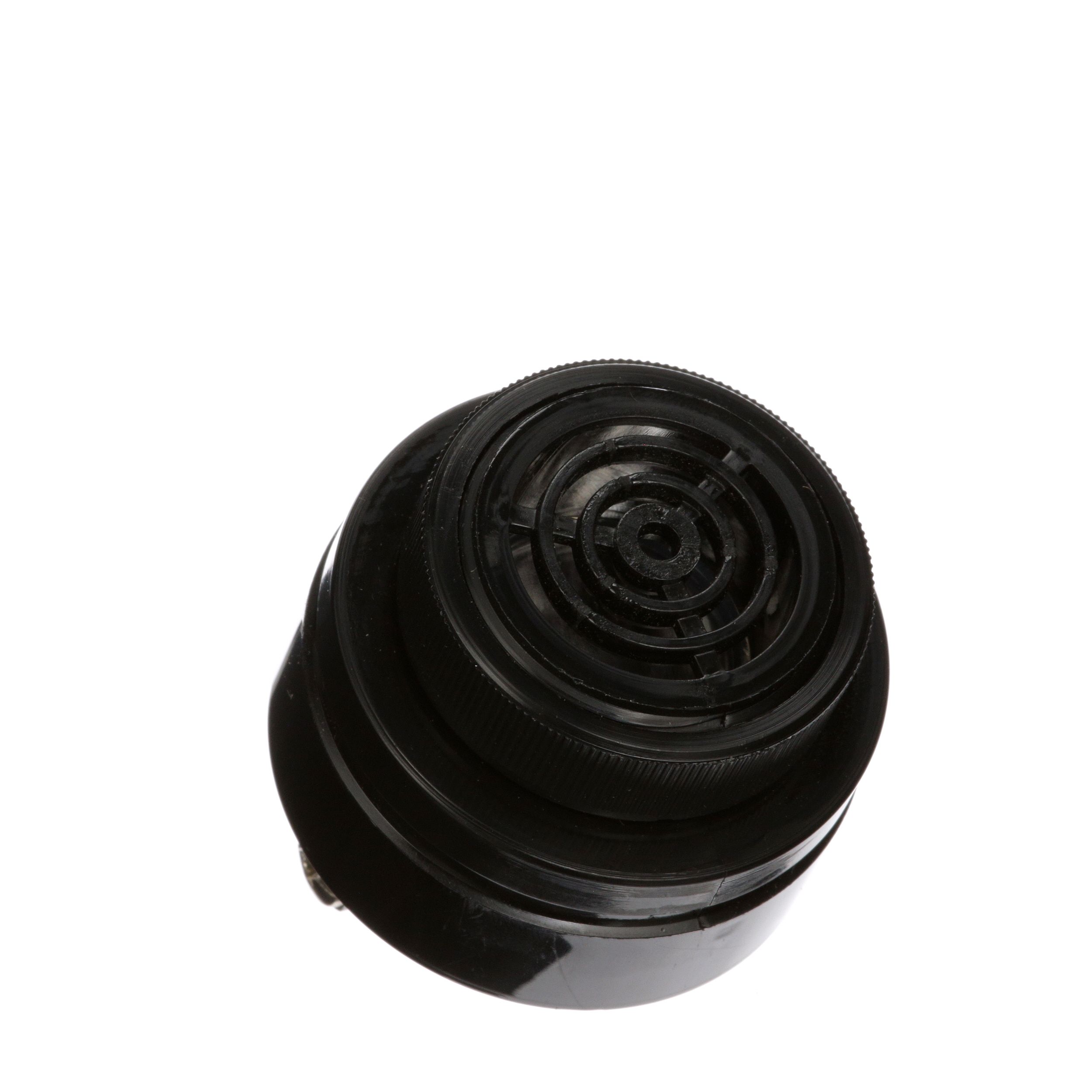

Product Images
