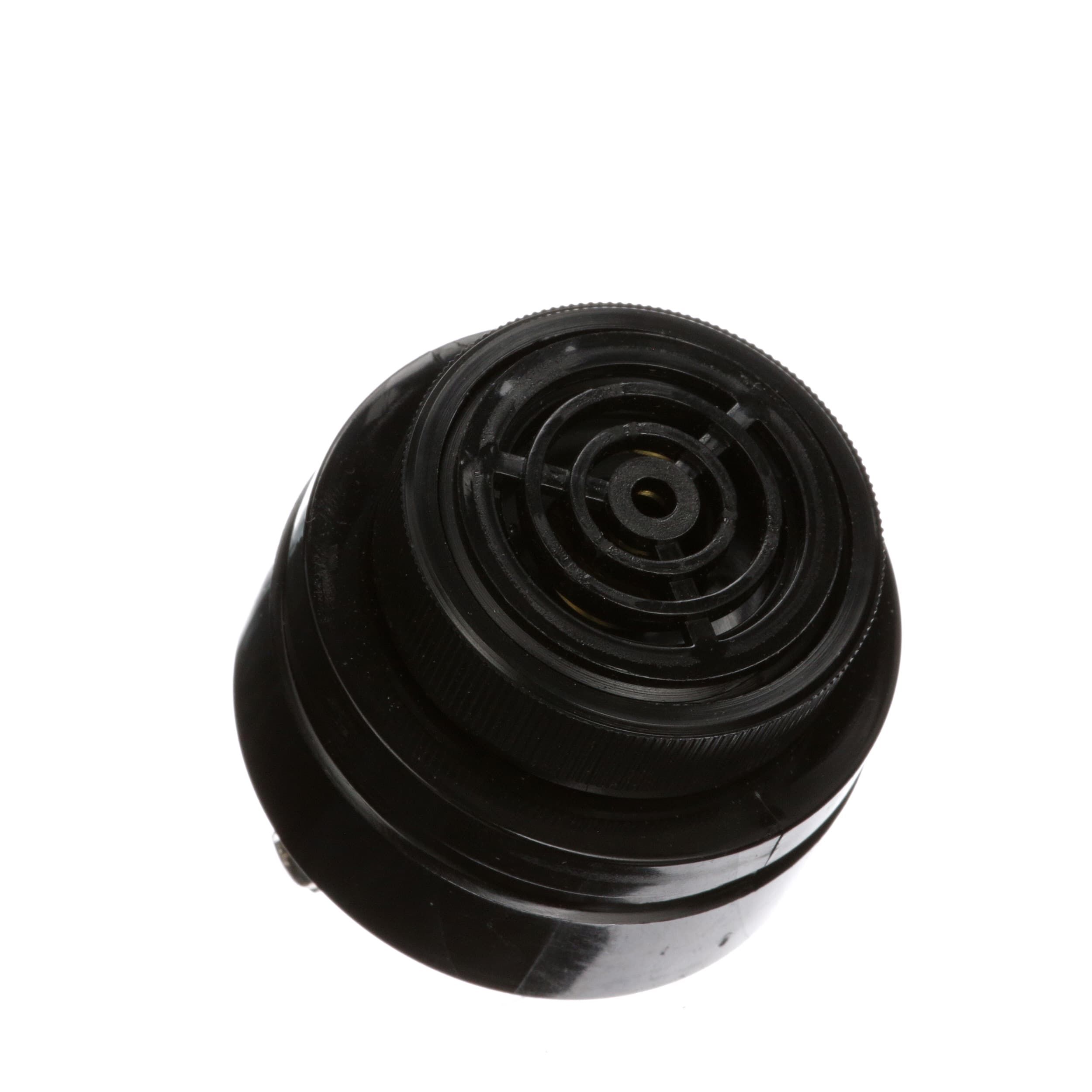

The SC110NP is a 42.85mm diameter piezo alarm from Mallory Sonalert. It operates within a temperature range of -30°C to 65°C and has a supply voltage range of 30V to 120V. The device draws a maximum supply current of 24mA. It is packaged in bulk and has a termination type of screw. The SC110NP is a panel mount device.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Mallory Sonalert SC110NP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Diameter | 42.85mm |
| Frequency | 2.9kHz |
| Housing Color | Black |
| Lead Free | Contains Lead |
| Length | 34.8mm |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -30°C |
| Max Supply Current | 24mA |
| Max Supply Voltage | 120V |
| Min Supply Voltage | 30V |
| Mount | Panel |
| Operating Supply Current | 24mA |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Self Resonant Frequency | 2.9kHz |
| Series | SC |
| Termination | Screw |
| Weight | 59.5g |
| RoHS | Not Compliant |
