Mallory Sonalert
SC110PR
Audio Indicator Piezo 30VDC/30VAC 120VDC/120VAC 19mA 68dBA 2600Hz to 3200Hz Panel Mount Screw Bulk
Frequency2.9kHz
Current Rating22mA
MountingPanel
Quick Jump:
Technical Specifications
Mallory Sonalert SC110PR technical specifications.
General
| Current Rating | 22mA |
| Diameter | 43mm |
| Frequency | 2.9kHz |
| Height | 48.51mm |
| Length | 1.69inch |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -30°C |
| Max Supply Current | 19mA |
| Max Supply Voltage | 120V |
| Min Supply Voltage | 30V |
| Mount | Panel |
| Operating Supply Current | 22mA |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Self Resonant Frequency | 2.9kHz |
| Series | SC |
| Termination | Screw |
| Voltage Rating (AC) | 120V |
| Washable | No |
| Weight | 1.587328oz |
| Width | 1.69inch |
Compliance
| RoHS | Compliant |
Datasheet
Mallory Sonalert SC110PR Datasheet
Download the complete datasheet for Mallory Sonalert SC110PR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

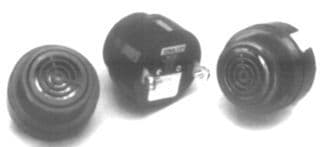

Product Images
