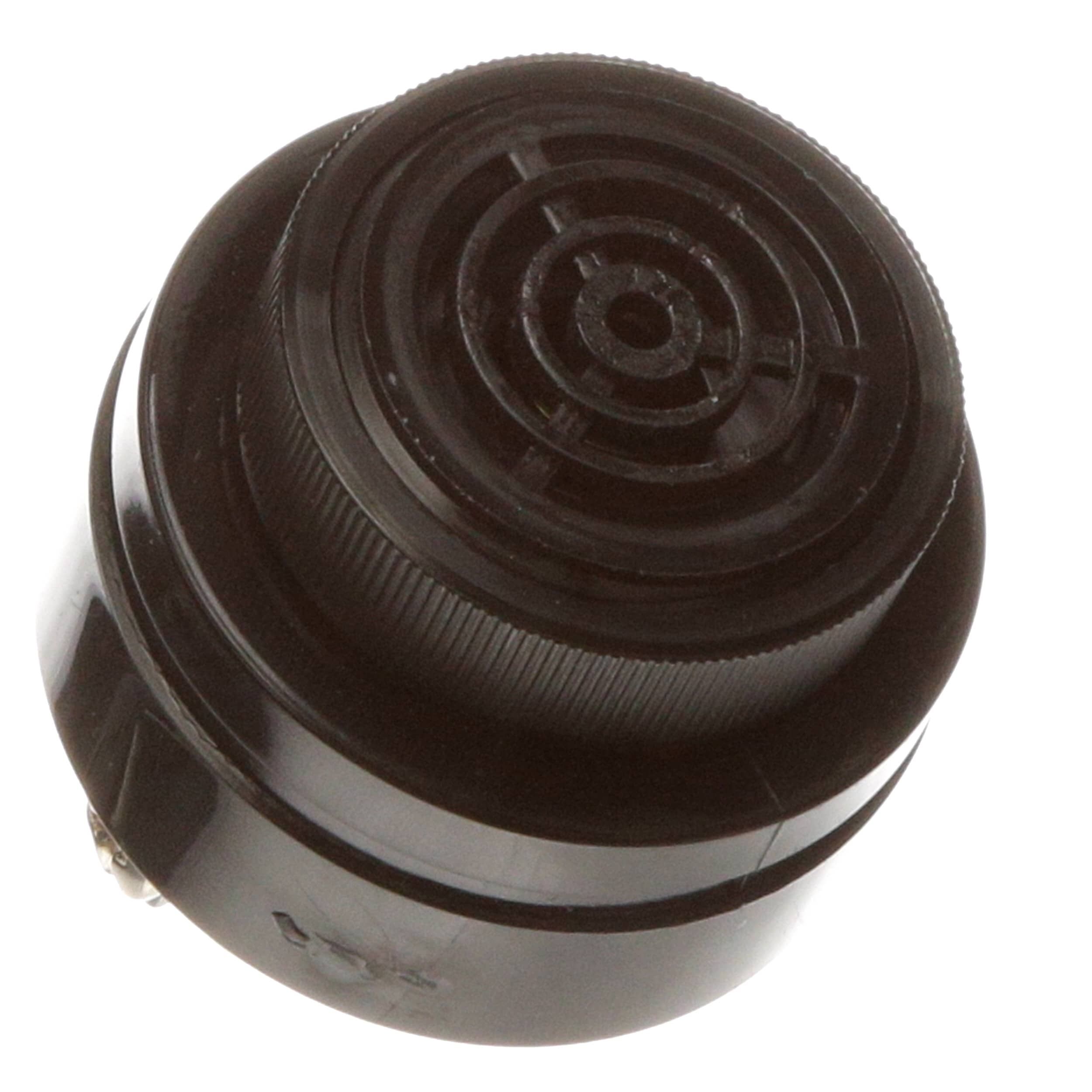

The SC307NR is a panel mount piezo alarm from Mallory Sonalert. It operates on a DC supply voltage of 3V with a maximum current rating of 12mA. The device can withstand temperatures up to 65°C and as low as -30°C. It is packaged in bulk and features a screw termination. The SC307NR is suitable for use in audio applications, including alarms and sirens.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Mallory Sonalert SC307NR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current Rating | 12mA |
| Diameter | 43mm |
| Frequency | 2.9kHz |
| Height | 32.6mm |
| Input Type | DC |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -30°C |
| Max Supply Current | 12mA |
| Max Supply Voltage | 7V |
| Min Supply Voltage | 3V |
| Mount | Panel |
| Operating Supply Current | 20mA |
| Outside Diameter | 42.85mm |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Self Resonant Frequency | 2.9kHz |
| Series | SC |
| Termination | Screw |
| DC Rated Voltage | 3V |
| RoHS | Compliant |
