Technical Specifications

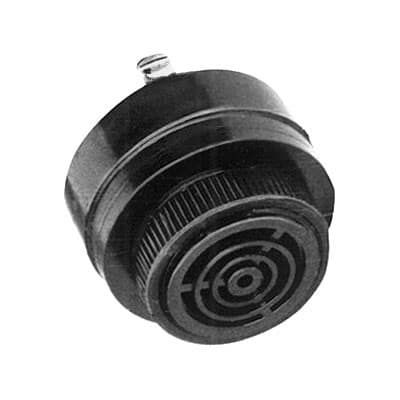

Mallory Sonalert SC616NP technical specifications.
General
Color
Black
Diameter
42.85mm
Frequency
2.9kHz
Height
32.6mm
Housing Color
Black
Input Type
DC
Lead Free
Contains Lead
Length
32.5mm
Max Operating Temperature
65°C
Min Operating Temperature
-30°C
Max Supply Current
22mA
Max Supply Voltage
16V
Min Supply Voltage
6V
Mount
Panel
Operating Supply Current
22mA
Outside Diameter
42.85mm
Packaging
Bulk
Reach SVHC Compliant
Unknown
Self Resonant Frequency
2.9kHz
Series
SC
Termination
Screw
Weight
42.5g
Compliance
RoHS
Compliant
Datasheet
Mallory Sonalert SC616NP Datasheet
Download the complete datasheet for Mallory Sonalert SC616NP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
