Mallory Sonalert
SC628AEP
Audio Indicator Piezo 6VAC 28VAC 16mA 57dBA/72dBA 1500Hz to 2500Hz Panel Mount Screw Bulk
Frequency2kHz
Voltage Rating28V
Current Rating16mA
MountingFlush, Panel
Quick Jump:
Technical Specifications
Mallory Sonalert SC628AEP technical specifications.
General
| Color | Black |
| Current Rating | 16mA |
| Diameter | 42.85mm |
| Frequency | 2kHz |
| Height | 61.53mm |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -30°C |
| Max Supply Current | 16mA |
| Mount | Flush, Panel |
| Operating Supply Current | 16mA |
| Packaging | Bulk |
| Self Resonant Frequency | 2kHz |
| Series | SC |
| Termination | Screw |
| Voltage Rating | 28V |
Compliance
| RoHS | Compliant |
Datasheet
Mallory Sonalert SC628AEP Datasheet
Download the complete datasheet for Mallory Sonalert SC628AEP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

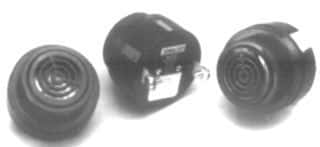

Product Images
