Mallory Sonalert
SC628AFJ
Audio Indicator Piezo 6VDC/6VAC 28VDC/28VAC 8mA 55dBA/68dBA 2400Hz to 3400Hz Panel Mount Screw Bulk
Frequency2.9kHz
Current Rating8mA
MountingFlush, Panel
Quick Jump:
Technical Specifications
Mallory Sonalert SC628AFJ technical specifications.
General
Current Rating
8mA
Diameter
43mm
Frequency
2.9kHz
Max Operating Temperature
65°C
Min Operating Temperature
-30°C
Max Supply Current
8mA
Mount
Flush, Panel
Operating Supply Current
8mA
Packaging
Bulk
Series
SC
Termination
Screw
Voltage Rating (AC)
6V
Compliance
RoHS
Compliant
Datasheet
Mallory Sonalert SC628AFJ Datasheet
Download the complete datasheet for Mallory Sonalert SC628AFJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

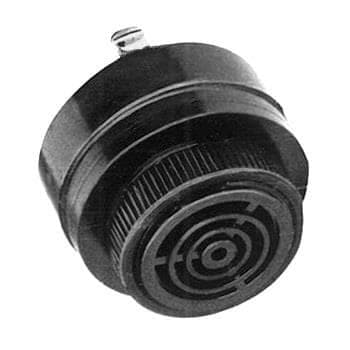

Product Images
